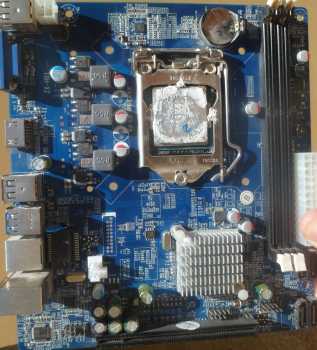

Koloe / Dianji ZX-H81 V1.01
chipChipset
cpuSocket
Socket H3 (LGA1150)
speedFSB speed
Empty
moboForm factor
Mini DTX (max 203 × 170 mm)
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
12V P4 Connector (4-pin P4) ATX 2.x (24-pin ATX)
connI/O ports
1x
3.5mm Audio Combo
1x
HDMI
1x
RJ-45 LAN
2x
SATA II
2x
SATA III
6x
USB 2.0
2x
USB 3.0
1x
VGA
cardExpansion slots
1x
PCIe x16

Also known as:

Notes:

ZX-H81 V1.01 and V1.1 lack the PCIe x1 slot that can be found on V1.2 and later versions.

Last updated 2024-08-04T18:31:15Z
Board info score is 7.4/10
