Jetway J-630CF
Chipset
Socket
FSB speeds 66MHz100MHz
Form factorMicroATX (max 244 x 244 mm)
DimensionsEmpty
Max VRAM size128MB
Cache
None/Integrated in the CPU
Max RAM size
1GB
RAM type SDR UDIMM
PSU connector
Also known as
- Jetway J-630CN (w/o LAN)
- Future Power FP-SI630E Daughter
- Mach Speed Mach 630CF
- Mach Speed MZ630
- Bona/Lex BN630L
- Bona/Lex BN630 (no LAN)
I/O ports1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
Serial
4x
USB 1.x
1x
VGA
Expansion slots3x
32-bit PCI
1x
AMR
Last updated 2024-08-01T17:03:53Z
Board info score is 9.3/10
Chips
-
Chipset part
-
Audio
10 BIOS files available
Award - 10 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
08/23/2001-SiS-630-6A6IRJ19C-00
Note
Future Power
Core version
6.00PG
BIOS version
Logs
7 drivers available
Name
Version
OS support
Size
Filename
Name
Version
A4.06
OS support
Windows 2000
Windows 9x
Windows XP
Size
17.9MB
Filename
Name
Version
A2.53
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP
Size
14.5MB
Filename
Name
Version
Empty
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Size
1.8MB
Filename
Name
Version
2.08A
OS support
Windows 9x
Size
Empty
Filename
Name
Version
2.08A
OS support
Windows NT 4.0
Size
Empty
Filename
Name
Version
1.21
OS support
Windows 2000
Windows 9x
Windows XP
Size
Empty
Filename
Name
Version
2.04A
OS support
Windows 2000
Windows 9x
Windows XP
Size
Empty
Filename
2 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-02
File
Logs
Family
Release date
2000-02
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1997-05
File
Logs

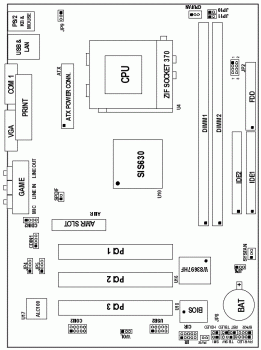

Image 1 of 2 (evasive)
Image 2 of 2
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
