Intel D815EEA2 (Easton 2)
Chipset
Socket
FSB speeds 66MHz100MHz133MHz
Form factorATX (max 305 x 244 mm)
Dimensions294 mm x 208 mm
Max VRAM size4MB
Cache
None/Integrated in the CPU
Max RAM size
512MB
RAM type SDR UDIMM
PSU connector
I/O ports1x
3.5mm Audio Combo
1x
Floppy interface
2x
IDE interface
1x
Intel DVO port
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
Serial
4x
USB 1.x
1x
VGA
Expansion slots5x
32-bit PCI
1x
CNR
1x
Universal AGP
Notes
-
D815EEA2 features onboard video (i752 based), D815EPEA2 is a variant of the former without onboard video.
-
Optional Intel 82562ET 10/100 LAN.
-
Tualatin CPUs are supported in the revisions A52395-700 or later A52399-700 or later A55991-700 or later.
-
Unlike the older D815EEA, D815EEA2 dropped support for Mendocino based Celerons.
-
Gateway board numbers: 2514576, 2514753, 2514927, 2514928, 2514929, 2515240, 2515241, 2515758, 2515802, 2515961, 2514686, 2514688, 2514689, 2514690, 2514691, 2514920, 2514922, 2515263, 2515728, 2515729, 2515731, 2515732, 2515734, 2515737, 2515738, 2515776, 2515949, 2515958, 2515959, 2515960
Last updated 2026-02-08T22:16:45Z
Board info score is 9.6/10
Chips
-> Chipset part
-> Audio
-> Clock Synth / PLL
-> Network
-> Power Regulation
-> Sensing / Monitoring
-> Super I/O
-> Video
13 BIOS files available
AMI - 13 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
EA81520A.86A.0039.P21.0211061753
Note
Latest BIOS (EXE)
Core version
Intel
BIOS version
Logs
POST string
EA81520A.86A.0039.P21.0211061753
Note
Latest BIOS (ROM)
Core version
Intel
BIOS version
Logs
POST string
EA81520A.86A.0028.P15.0109180850
Note
P15 (ROM)
Core version
Intel
BIOS version
Logs
15 drivers available
Name
Version
OS support
Size
Filename
Name
Version
6.13.01.3196
OS support
Windows 2000
Windows XP/2k3
Size
Empty
Filename
Name
Version
4.13.01.3196
OS support
Windows 9x
Size
Empty
Filename
Name
Version
4.03.1381.3196
OS support
Windows NT 4.0
Size
Empty
Filename
Name
Version
3.5.1.6
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Size
18.5MB
Filename
Name
Version
6.3.0.1007
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Size
Empty
Filename
Name
Version
3.20.1008
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Size
1.4MB
Filename
Name
Version
4.1
OS support
Windows 2000
Windows NT 4.0
Windows XP/2k3
Size
4.2MB
Filename
Name
Version
4.1
OS support
Windows 2000
Windows NT 4.0
Windows XP/2k3
Size
4.2MB
Filename
Name
Version
6.2
OS support
Linux
MS-DOS
NetWare Server 3
NetWare Server 4
Netware Client32
OS/2 2.x
Windows 2000
Windows 9x
Windows NT 4.0
Size
64.3MB
Filename
Name
Version
5.1
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
7.2MB
Filename
Name
Version
3.40.1001
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Size
2.2MB
Filename
Name
Version
3.40.1001
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Size
2.2MB
Filename
Name
Version
3.40.1001
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Size
2.2MB
Filename
Name
Version
2.80
OS support
Windows 2000
Windows 9x
Size
1.5MB
Filename
Name
Version
2.80
OS support
Windows 2000
Windows 9x
Size
1.5MB
Filename
2 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2000-02
File
Logs
Family
Release date
2000-02
File
Logs
Family
Release date
2002-06
File
Logs
Family
Release date
2001-06
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1997-05
File
Logs
Image 1 of 5 (Microhouse)

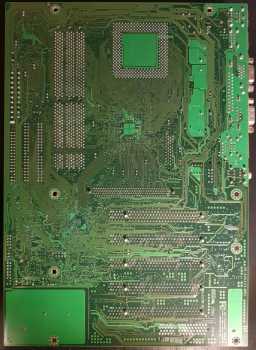

Image 2 of 5

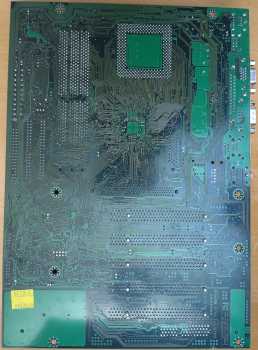

Image 3 of 5 (Harakhti)

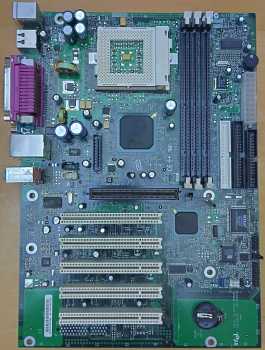

Image 4 of 5
Image 5 of 5 (Harakhti)
