Intel CA810 (Cayman)
Logs
chipChipset
cpuSocket
Socket 370 (PGA370)
speedFSB speeds
66MHz100MHz133MHz
moboForm factor
MicroATX (max 244 x 244 mm)
dimDimensions
244 mm x 244 mm
ramMax VRAM size
4MB
chipCache
None/Integrated in the CPU
ramMax RAM size
512MB
ramRAM type
SDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
maxcpuMulti CPU support
no
tag Also known as
connI/O ports
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
2x
USB 1.x
cardExpansion slots
4x
32-bit PCI
notes Notes

Optional Intel 82559 LAN Controller. Coppermine is supported in revision A09251-300 or later A09253-300 or later.

Last updated 2024-05-13T09:08:52Z
Board info score is 9.8/10
bios 10 BIOS files available

vendor AMI - 10 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
8C1A100A.86A.0021.P12.0005251330
Note
Latest BIOS
Core version
Intel
BIOS version
Logs
POST string
8C1A100A.86A.0019.P10.9912091700
Note
Core version
Intel
BIOS version
Logs
POST string
CA81020A.86A.0017.P08.0103221311
Note
Core version
Intel
BIOS version
Logs
POST string
CA81020A.10A.0030.P10.0011131641
Note
Dell OEM
Core version
Intel
BIOS version
Logs
POST string
CA81020A.10A.0026.P09.0010190843
Note
Dell OEM
Core version
Intel
BIOS version
Logs
POST string
CA81020A.10A.0048.P15.0109051551
Note
Dell OEM
Core version
Intel
BIOS version
Logs
POST string
CA81020A.10A.0044.P14.0105161313
Note
Dell OEM
Core version
Intel
BIOS version
Logs
POST string
CA81020A.10A.0040.P13.0103291013
Note
Dell OEM
Core version
Intel
BIOS version
Logs
POST string
CA81020A.10A.0038.P12.0103071311
Note
Dell OEM
Core version
Intel
BIOS version
Logs
POST string
CA81020A.10A.0024.P08.0008021017
Note
Dell OEM
Core version
Intel
BIOS version
Logs
drv 10 drivers available
Name
Version
OS support
Size
Filename
Name
Version
6.13.01.3196
OS support
Windows 2000 Windows XP
Size
Empty
Filename
Name
Version
4.13.01.3196
OS support
Windows 9x
Size
Empty
Filename
Name
Version
4.03.1381.3196
OS support
Windows NT 4.0
Size
Empty
Filename
Name
Version
2.5
OS support
Windows 9x
Size
7.2MB
Filename
Name
Version
6.3.0.1007
OS support
Windows 2000 Windows 9x Windows XP
Size
Empty
Filename
Name
Version
3.20.1008
OS support
Windows 2000 Windows 9x Windows XP
Size
Empty
Filename
Name
Version
3.40.1001
OS support
Windows 2000 Windows 9x Windows XP
Size
2.2MB
Filename
Name
Version
3.40.1001
OS support
Windows 2000 Windows 9x Windows XP
Size
2.2MB
Filename
Name
Version
2.80
OS support
Windows 2000 Windows 9x
Size
1.5MB
Filename
Name
Version
2.80
OS support
Windows 2000 Windows 9x
Size
1.5MB
Filename
doc 5 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-02
File
Logs
Family
Release date
2000-02
File
Logs
Family
Release date
2001-06
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1997-05
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1999-04
File
Logs
Socket
Release date
1999-12
File
Logs
Socket
Release date
2000-07
File
Logs
image1 Image 1 of 6 (Microhouse)

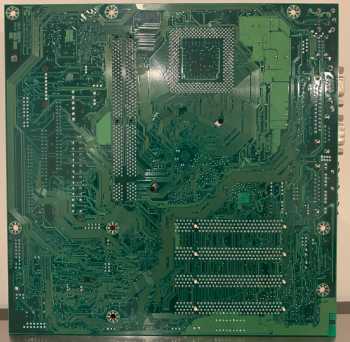

image2 Image 2 of 6 (GecRyan)
image3 Image 3 of 6 (vvolcano)
image4 Image 4 of 6 (GecRyan)
image5 Image 5 of 6 (vvolcano)
image6 Image 6 of 6 (vvolcano)
