Intel Advanced/ZP (Zappa)
Chipset
Socket
FSB speeds 50MHz60MHz66MHz
Form factorBaby AT (max 220 x 330 mm)
Dimensions254mm x 218mm
Cache
None/Integrated in the CPU
Max RAM size
128MB
RAM types 72-pin FPM72-pin EDO
PSU connector
Also known as
- Unknown PTI-5
- Gateway MBDPCI009AAWW
I/O ports1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
Parallel
2x
Serial
Expansion slots4x
16-bit ISA
3x
32-bit PCI
Last updated 2024-08-27T15:32:28Z
Board info score is 9.5/10
Chips
-
Chipset part
CPU family support
13 BIOS files available
AMI - 9 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
1.00.11.BS0T
Note
Gateway harddisk support up to 8.4GB
Core version
Intel
BIOS version
Logs
Mr. BIOS - 4 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
INTL50I
Note
System BIOS for Zappa ZP or ED motherboard (Intel Triton 1.00.0X.BS0)
Core version
3.30
BIOS version
Logs
5 drivers available
Name
Version
OS support
Size
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS
NetWare Server 3
NetWare Server 4
OS/2 Warp 3.x
Windows 3.1x
Windows 9x
Windows NT 3.5x
Size
1.6MB
Filename
Name
Version
3.00
OS support
OS/2 Warp 3.x
Windows NT 3.5x
Windows NT 4.0
Size
1.2MB
Filename
Name
Version
3.00
OS support
OS/2 Warp 3.x
Windows NT 3.5x
Windows NT 4.0
Size
1.2MB
Filename
3 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
1997-06
File
Logs
Family
Release date
1997-08
File
Logs

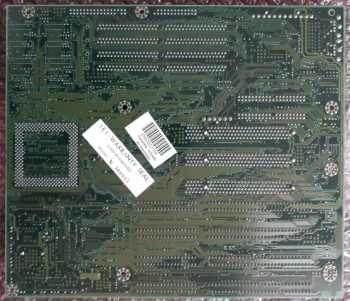

Image 1 of 7 (Microhouse)

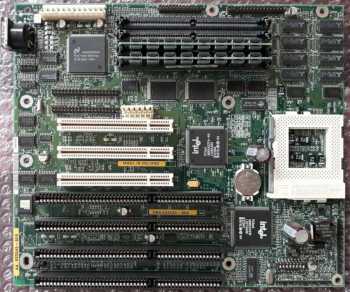

Image 2 of 7 (Microhouse)

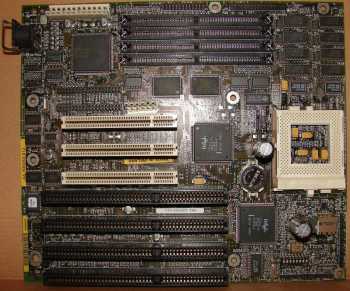

Image 3 of 7 (GecRyan)

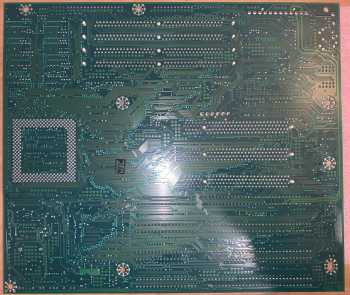

Image 4 of 7 (madix)
Image 5 of 7
Image 6 of 7 (GecRyan)
Image 7 of 7
