ICP WAFER-5822
Chipset
Socket
FSB speed 33MHz
Form factorECX/Biscuit SBC 3.5" (max 146 x 105 mm)
Dimensions145 mm x 102 mm
Max VRAM size4MB
Cache
None/Integrated in the CPU
Max RAM size
512MB
RAM type 144-pin SDR SO-DIMM
PSU connector
Also known as
- IEI WAFER-5822
I/O ports1x
3.5mm Audio Combo
1x
Disk-on-Chip Socket
1x
Floppy interface
1x
IDE interface
1x
PS/2 KB+MS Combo
1x
Parallel
1x
RJ-45 LAN
2x
Serial
2x
USB 1.x
1x
VGA
Expansion slots1x
PCI-104
Last updated 2024-01-19T12:50:18Z
Board info score is 9.4/10
Chips
-
Chipset part
-
Super I/O
CPU family support
5 BIOS files available
Award - 5 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
08/02/2004-GXm-Cx5530-2A434I9BC-00
Note
Core version
v4.51PG
BIOS version
Logs
POST string
03/08/2002-GXm-Cx5530-2A434I9BC-00
Note
Core version
v4.51PG
BIOS version
Logs
POST string
03/08/2002-GXm-Cx5530-2A434I9BC-00
Note
Core version
v4.51PG
BIOS version
Logs
POST string
10/29/2001-GXm-Cx5530-2A434I9BC-00
Note
Core version
v4.51PG
BIOS version
Logs
POST string
10/18/2000-GXm-Cx5530-2A434I9BC-00
Note
Core version
v4.51PG
BIOS version
Logs
1 driver available
Name
Version
OS support
Size
Filename
Name
Version
V5.00
OS support
MS-DOS
Mac OS X
NetWare Server 3
NetWare Server 4
Netware Client32
SCO Unix - OpenServer
Windows 2000
Windows 3.1x
Windows 9x
Windows NT 3.5x
Windows NT 4.0
Size
3.3MB
Filename
2 board documents available
Chip
Release date
File
Logs
Chip
Release date
2000-05-12
File
Logs

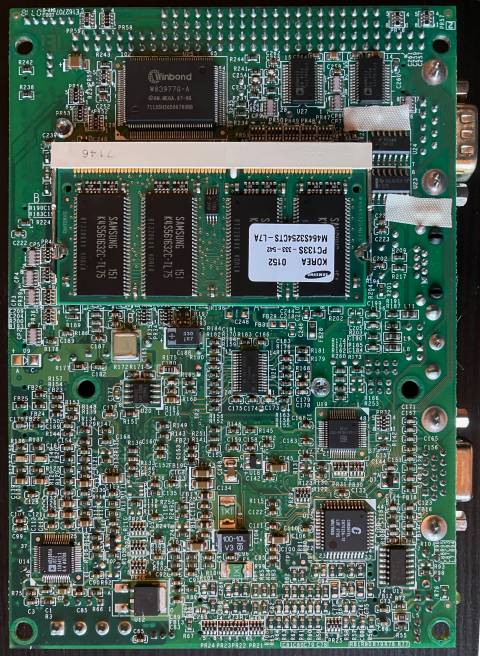

Image 1 of 3 (evasive)

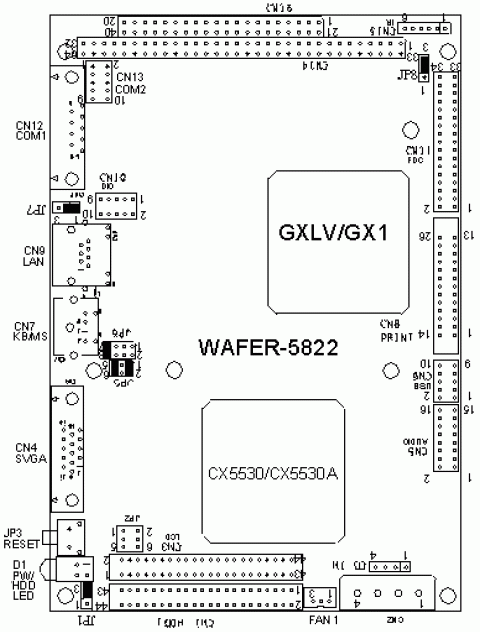

Image 2 of 3 (Yrouel)
Image 3 of 3 (Yrouel)
