IBM PS/2 MODEL 56SLC2, 56SLC3, 57SLC2 & 57SLC3 (9556, 9557)
Logs
chipChipset
cpuSockets
PLCC68 PQFP100
speedFSB speed
25MHz
moboForm factor
OEM / Proprietary
dimDimensions
330mm x 218mm
ramMax VRAM size
256KB
chipCache
None/Integrated in the CPU
ramMax RAM size
16MB
ramRAM type
72-pin FPM
pwrPSU connector
OEM/Proprietary
maxcpuMulti CPU support
no
tag Also known as
  • IBM 39G6410 (SLC2)
  • IBM 65G9714 (SLC3)
  • IBM PS/2 Ultimedia M57
connI/O ports
1x
External SCSI
1x
Floppy interface
1x
Internal SCSI
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
1x
VGA
cardExpansion slots
2x
16-bit MCA
1x
16-bit MCA with AVE
notes Notes

Model 57 has 2 additional 16-bit MCA slots in the riser. The motherboards are the same.

The 486BL3 75MHz CPU is based on the 386DX platform, however it can operate in 16bit 386sx mode. This is how it is operating in this system, with a performance penalty. Additionally its cache runs at 25MHz so it is further hampered.

Further Details:

https://www.ardent-tool.com/35-77/

https://www.ardent-tool.com/9556/

Last updated 2024-07-27T14:56:57Z
Board info score is 6.8/10
bios 0 BIOS files available
drv No drivers available
doc No board documents available

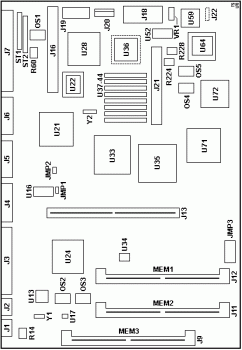

image1 Image 1 of 4 (Tomas Slavotinek)
