Gigabyte GA-X58A-UD9 (rev. 1.0)
Logs
chipChipset
cpuSocket
Socket B (LGA1366)
speedFSB speeds
2400MHz3200MHz
moboForm factor
XL ATX (max 345 x 262 mm)
dimDimensions
345mm x 262mm
chipCache
None/Integrated in the CPU
ramMax RAM size
24GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
connI/O ports
1x
3.5mm Audio Combo
3x
FireWire 400
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
2x
RJ-45 LAN
1x
S/PDIF
8x
SATA II
2x
SATA III
1x
Toslink
12x
USB 2.0
2x
USB 3.0
2x
eSATA II
cardExpansion slots
4x
PCIe x16
3x
PCIe x16 @ x8
notes Notes

Support for 2-Way/3-Way/4-Way ATI CrossFireX™/NVIDIA SLI technology

Last updated 2024-05-25T12:59:14Z
Board info score is 9.6/10
bios 6 BIOS files available

vendor Award - 6 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
03/30/2012-X58-ICH10-7A89QG0MC-00
Note
May Overvolt the cpu with 1.5-1.6 vcore on default settings
Core version
6.00PG
BIOS version
Logs
POST string
03/07/2011-X58-ICH10-7A89QG0MC-00
Note
Beta Version
Core version
6.00PG
BIOS version
Logs
POST string
08/24/2010-X58-ICH10-7A89QG0MC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
05/28/2010-X58-ICH10-7A89QG0MC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
05/21/2010-X58-ICH10-7A89QG0MC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
04/19/2010-X58-ICH10-7A89QG0MC-00
Note
Core version
6.00PG
BIOS version
Logs
drv 5 drivers available
Name
Version
OS support
Size
Filename
Name
Version
9.1.2.1007
OS support
Windows 2000 Windows 7 Windows Vista Windows XP
Size
2.4MB
Filename
Name
Version
1.01.90
OS support
Windows 7 Windows Vista Windows XP
Size
7.2MB
Filename
Name
Version
2.1.39.0
OS support
Windows 7 Windows Vista Windows XP
Size
11.3MB
Filename
Name
Version
2.0.40
OS support
Windows 7 Windows Vista Windows XP
Size
7.2MB
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP
Size
30.7MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2008-10
File
Logs
Chip
Release date
2013-09
File
Logs
Chip
Release date
2008-07
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2003-02
File
Logs
Family
Release date
File
Logs
Family
Release date
2008-08-12
File
Logs
Family
Release date
2008-08-12
File
Logs
Family
Release date
File
Logs
Family
Release date
2010-02
File
Logs
Family
Release date
2010-07
File
Logs
Family
Release date
2011-05
File
Logs
Family
Release date
2017-01
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2004
File
Logs

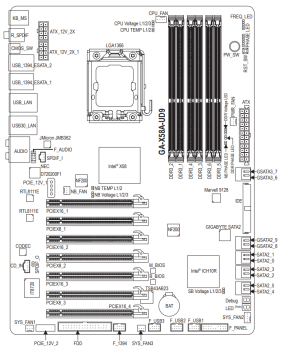

image1 Image 1 of 5

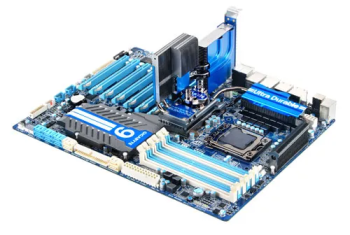

image2 Image 2 of 5 (Gigabyte)

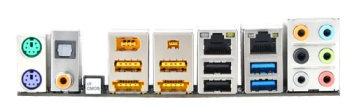

image3 Image 3 of 5 (px4c)
image4 Image 4 of 5 (Gigabyte)
image5 Image 5 of 5 (Gigabyte)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
