Gigabyte GA-MA790FX-DQ6 (rev. 1.0)
Chipset
Sockets
FSB speed Empty
Form factorATX (max 305 x 244 mm)
Dimensions305mm x 244mm
Cache
None/Integrated in the CPU
Max RAM size
16GB(DDR2-1066)
RAM types DDR2 UDIMMDDR2 UDIMM ECC
PSU connector
I/O ports1x
3.5mm Audio Combo
3x
FireWire 400
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
RJ-45 LAN
6x
SATA II
1x
Serial
1x
Toslink
10x
USB 2.0
1x
eSATA
Expansion slots2x
32-bit PCI
1x
PCIe x1
2x
PCIe x16
2x
PCIe x16 @ x8
Last updated 2025-05-06T06:53:04Z
Board info score is 9.2/10
Chips
-
Chipset part
-
FireWire ctrl.
-
Power Management
-
RAID ctrl.
-
Super I/O
6 BIOS files available
Award - 6 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
07/19/2010-RD790-SB600-6A66AG01C-00
Note
Supports Phenom II X6
Core version
6.00PG
BIOS version
Logs
1 driver available
Name
Version
OS support
Size
Filename
Name
Version
R1.17.39
OS support
Windows 2000
Windows Vista
Windows XP
Size
3.8MB
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-02-06
File
Logs
Chip
Release date
2003-02
File
Logs
Chip
Release date
2006-01-09
File
Logs

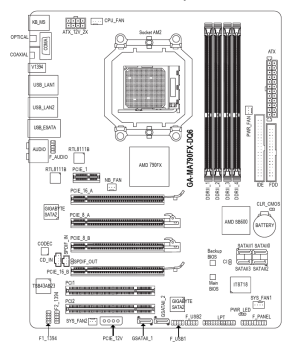

Image 1 of 4
Image 2 of 4 (Rigo "0xCats" Reddig)
Image 3 of 4 (Rigo "0xCats" Reddig)
Image 4 of 4
