Gigabyte GA-MA770-DS3 (rev. 2.0)
Logs
chipChipset
cpuSockets
Socket AM2 (mPGA940) Socket AM2+ (mPGA940) Socket AM3 (mPGA941)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 210mm
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM types
DDR2 UDIMMDDR2 UDIMM ECC
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
3x
FireWire 400
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
3x
S/PDIF
6x
SATA II
2x
Serial
1x
Toslink
12x
USB 2.0
cardExpansion slots
2x
32-bit PCI
4x
PCIe x1
1x
PCIe x16
notes Notes

Uses Realtek 8111C Gigabit Ethernet controller

Supports AM3 cpus

Last updated 2024-10-23T12:19:24Z
Board info score is 9.4/10
bios 4 BIOS files available

vendor Award - 4 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
09/13/2010-RX780-SB700-6A66AG09C-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
03/18/2009-RX780-SB700-6A66AG09C-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
01/16/2009-RD780-SB700-6A66AG09C-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
07/14/2008-RD780-SB700-6A66AG09C-00
Note
Core version
6.00PG
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP
Size
30.7MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-04-25
File
Logs
Chip
Release date
2008-04-07
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2003-02
File
Logs

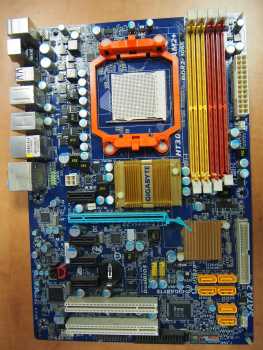

image1 Image 1 of 5

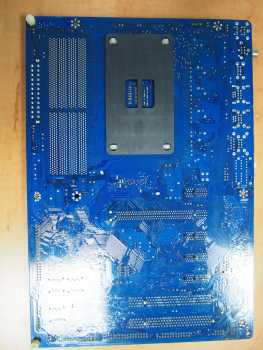

image2 Image 2 of 5

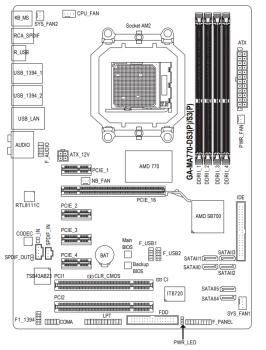

image3 Image 3 of 5
image4 Image 4 of 5
image5 Image 5 of 5
