Gigabyte GA-7VKMP-P
Chipset
Socket
FSB speeds 200 MHz266 MHz
Form factormicroATX (max 244 x 244 mm)
Dimensions244mm x 217mm
Max VRAM size32 MB
Cache
None/Integrated in the CPU
Max RAM size
1 GB
RAM type DDR UDIMM
PSU connector
Also known as
- Gigabyte GA-7VKMP-SI (no SPDIF)
I/O ports1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
S/PDIF
1x
Serial
6x
USB 2.0
1x
VGA
Expansion slots3x
32-bit PCI
1x
Universal AGP
Last updated 2022-04-11T17:23:28Z
Board info score is 9.4/10
Chips
-> Chipset part
-> Audio
-> Video
CPU family support
3 BIOS files available
AMI - 3 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
62-2002-001199-00101111-040201-KM266A-GA7VKMP1
Note
Core version
070010
BIOS version
Logs
POST string
62-2002-001199-00101111-040201-KM266A-GA7VKMP1
Note
Core version
070010
BIOS version
Logs
POST string
62-2002-001199-00101111-040201-KM266A-GA7VKMP1
Note
Core version
070010
BIOS version
Logs
5 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
A4.06
Arch
x86
OS support
Windows 2000
Windows XP/2k3
Size
17.9MB
Filename
Name
Version
4.43V
Arch
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
1.1MB
Filename
Name
Version
5.70d
Arch
x86
OS support
Windows 2000
Windows 9x
Windows NT 3.5x
Windows NT 4.0
Windows XP/2k3
Size
3.9MB
Filename
Name
Version
V3.00a
Arch
x86
OS support
MS-DOS
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Size
1.9MB
Filename
Name
Version
13.01.09
Arch
OS support
Windows 9x
Size
5.4MB
Filename
2 board documents available
Chip
Release date
File
Logs

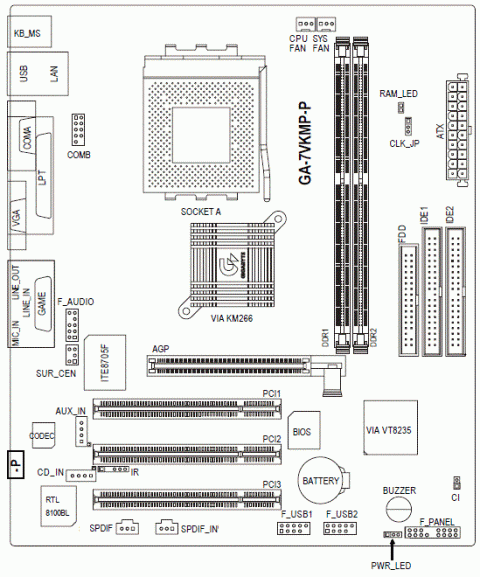

Image 1 of 2 (evasive)
Image 2 of 2
