Gigabyte GA-6VX7-4X REV 3.2
Chipset
Socket
FSB speeds 66MHz100MHz133MHz
Form factorATX (max 305 x 244 mm)
Dimensions305mm x 190mm
Cache
None/Integrated in the CPU
Max RAM size
1.5GB
RAM types VCM SDR UDIMMSDR UDIMMSDR UDIMM ECC
PSU connector
I/O ports1x
3.5mm Audio Combo
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
IrDA
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
4x
USB 1.x
Expansion slots1x
16-bit ISA
5x
32-bit PCI
1x
AMR
1x
Universal AGP
Known issues
- Faulty or Leaking Electrolytic Capacitors
Some motherboards may contain faulty or leaking electrolytic capacitors, which can negatively impact system performance or stability. These capacitors may exhibit issues such as bulging, leaking, or even exploding, potentially damaging other components on the motherboard. Users should inspect their capacitors regularly and replace any that are faulty or leaking to avoid damage or system instability.
Notes
Later revision of the GA-6VX7-4X, lacks support for PPGA CPUs
Last updated 2023-05-25T13:38:22Z
Board info score is 9.4/10
Chips
-
Chipset part
-
Clock Synth / PLL
1 BIOS file available
AMI - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
62-1001-001199-00101111-071595-V694V686-GA694002
Note
Core version
071595
BIOS version
Logs
8 drivers available
Name
Version
OS support
Size
Filename
Name
Version
4.43V
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP
Size
1.1MB
Filename
Name
Version
4.35V
OS support
Windows 2000
Windows 9x
Windows XP
Size
973.7KB
Filename
Name
Version
5.70d
OS support
Windows 2000
Windows 9x
Windows NT 3.5x
Windows NT 4.0
Windows XP
Size
3.9MB
Filename
Name
Version
V3.00a
OS support
MS-DOS
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP
Size
1.9MB
Filename
Name
Version
2.20a
OS support
MS-DOS
OS/2 Warp 4.x
Windows 9x
Windows NT 4.0
Windows XP
Size
4.3MB
Filename
Name
Version
2.10c
OS support
MS-DOS
OS/2 Warp 4.x
Windows 2000
Windows 9x
Windows NT 3.5x
Windows NT 4.0
Windows XP
Size
4.3MB
Filename
Name
Version
1.08
OS support
Windows 2000
Windows 9x
Size
553.6KB
Filename
2 board documents available
Chip
Release date
File
Logs
Chip
Release date
2000-05-12
File
Logs
Family
Release date
File
Logs
Family
Release date
2000-02
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1997-05
File
Logs

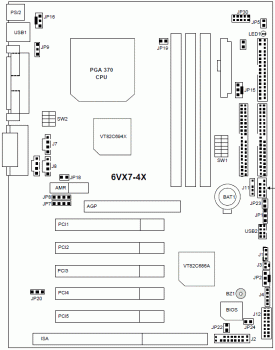

Image 1 of 2 (evasive)
Image 2 of 2 (Carlos S. M.)
