Gigabyte GA-5AA (rev 3.2)
Logs
chipChipset
cpuSocket
Socket 7 (PGA321)
speedFSB speeds
60MHz66MHz75MHz83MHz95MHz97MHz100MHz105MHz110MHz115MHz120MHz125MHz130MHz133MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
220mm x 210mm
chipCache
512KB
ramMax RAM size
768MB
ramRAM type
SDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX) AT (6-pin P8 + 6-pin P9)
connI/O ports
1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
PS/2 mouse
1x
Parallel
2x
Serial
2x
USB 1.x
cardExpansion slots
2x
16-bit ISA
1x
3.3V AGP
3x
32-bit PCI
notes Notes

Baby AT version of the Gigabyte GA-5AX. F7b BIOS supports large HDD.

At least one report of usable stable 1.5GB RAM using 512MB sticks. Registered RAM confirmed to not work in this motherboard.

Windows 7 confirmed working on this motherboard with K6-3+ and F7b BIOS.

There have been reports of Windows instability with F7b BIOS. If experiencing issues with that, try F6 BIOS.

Last updated 2024-06-04T21:44:50Z
Board info score is 9.1/10
bios 3 BIOS files available

vendor AMI - 3 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
51-0923-001199-00101111-120299-ALADDIN5-GA-5AA-T99
Note
beta, 64GB HDD patched
Core version
071595
BIOS version
Logs
POST string
51-0923-001199-00101111-120299-ALADDIN5-GA-5AA-T99
Note
Core version
071595
BIOS version
Logs
POST string
51-0923-119900-00101111-071599-ALADDIN5-GA-5AA-T99
Note
Core version
071595
BIOS version
Logs
drv 4 drivers available
Name
Version
OS support
Size
Filename
Name
Version
1.20
OS support
Windows 9x
Size
615.5KB
Filename
Name
Version
3.54
OS support
Windows 9x Windows NT 4.0
Size
719.6KB
Filename
Name
Version
1.00
OS support
Windows 9x
Size
1.5MB
Filename
Name
Version
1.65e
OS support
Windows 9x
Size
795.1KB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
1999-11-25
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2000-09
File
Logs
Family
Release date
1999-12
File
Logs
Family
Release date
2000-04
File
Logs
Family
Release date
2000-11
File
Logs
Family
Release date
1997-06
File
Logs
Family
Release date
1998-01
File
Logs
Family
Release date
1997-06
File
Logs
Family
Release date
1997-08
File
Logs

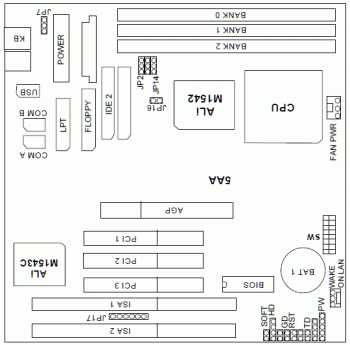

image1 Image 1 of 2 (evasive)
image2 Image 2 of 2 (Fo-91)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
