Foxconn WinFast 748K7AA-ERS
Chipset
Socket
FSB speeds 200MHz266MHz333MHz400MHz
Form factorATX (max 305 x 244 mm)
Dimensions305mm x 203mm
Cache
None/Integrated in the CPU
Max RAM size
3GB(DDR-400)
RAM type DDR UDIMM
PSU connector
I/O ports1x
3.5mm Audio Combo
2x
FireWire 400
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
2x
SATA I
1x
Serial
8x
USB 2.0
Expansion slots1x
1.5V AGP
5x
32-bit PCI
1x
CNR
Notes
- Optional SATA, firewire.
Last updated 2026-02-15T20:49:12Z
Board info score is 9.6/10
Chips
-> Chipset part
-> Audio
-> FireWire ctrl.
-> Network
CPU family support
- AMD K7 - Athlon XP (Palomino)
- AMD K7 - Duron (Morgan)
- AMD K7 - Athlon XP (Thoroughbred)
- AMD K7 - Athlon XP (Barton)
- AMD K7 - Athlon (Thunderbird)
- AMD K7 - Athlon MP (Palomino)
- AMD K7 - Duron (Applebred)
- AMD K7 - Geode NX (Thoroughbred)
- AMD K7 - Sempron (Thoroughbred)
- AMD K7 - Athlon MP (Thoroughbred)
- AMD K7 - Sempron (Barton)
- AMD K7 - Sempron (Thorton)
- AMD K7 - Athlon XP (Thorton)
- AMD K7 - Athlon MP (Barton)
- AMD K7 - Duron (Spitfire)
2 BIOS files available
Award - 2 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
11/26/2004-SiS-748-6A7I1FK9C-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
01/13/2006-SiS-748-6A7I1FK9C-00
Note
Core version
6.00PG
BIOS version
Logs
1 driver available
Name
Version
OS support
Size
Filename
Name
Version
A4.06
OS support
Windows 2000
Windows XP/2k3
Size
17.9MB
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-10
File
Logs
Chip
Release date
2004-11
File
Logs
Chip
Release date
2006-05
File
Logs
Chip
Release date
2006-10
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-05
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs

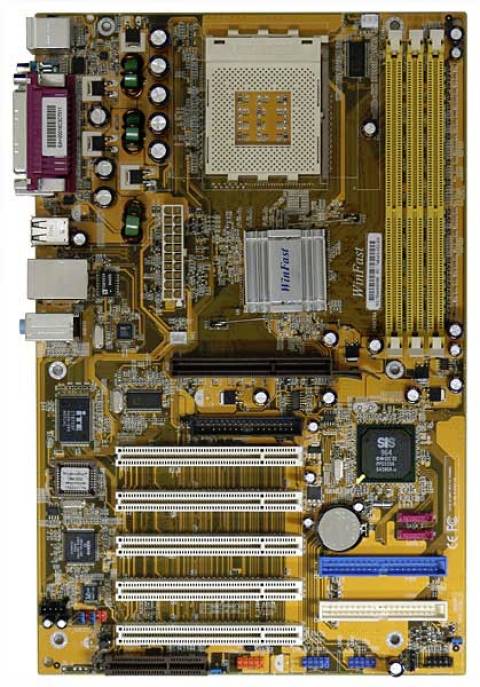

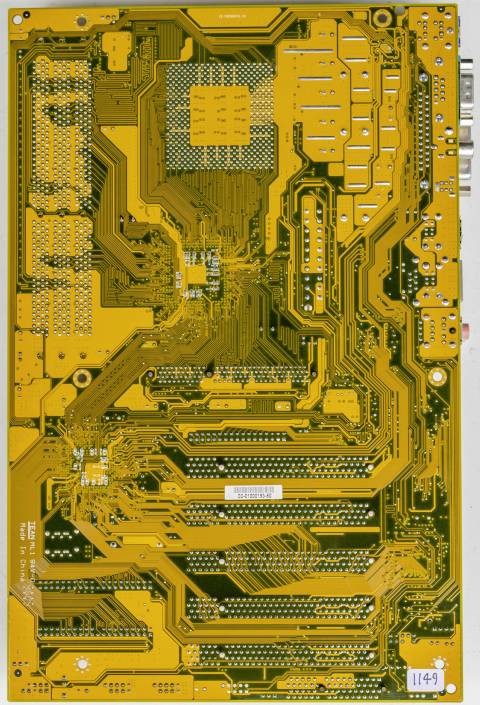

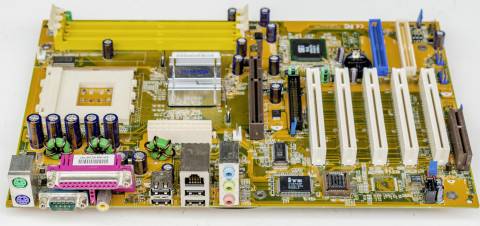

Image 1 of 6 (candle_86)
Image 2 of 6 (Motherboard Continuum)
Image 3 of 6 (Foxconn)
Image 4 of 6 (Motherboard Continuum)
Image 5 of 6 (Motherboard Continuum)
Image 6 of 6 (Foxconn)
