Foxconn WinFast MCP61PM2MA-EKRS2H (Retail)
Logs
chipChipset
cpuSocket
Socket AM2 (mPGA940)
speedFSB speed
Empty
moboForm factor
MicroATX (max 244 x 244 mm)
dimDimensions
244mm x 244mm
ramMax VRAM size
128MB
chipCache
None/Integrated in the CPU
ramMax RAM size
4GB(DDR2-800)
ramRAM type
DDR2 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
  • Foxconn MCP61PM2MA-ERS2H (10/100Mb LAN)

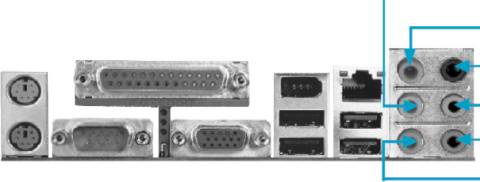

connI/O ports
1x
3.5mm Audio Combo
2x
FireWire 400
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
4x
SATA II
1x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
2x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
Last updated 2023-12-10T15:43:59Z
Board info score is 9/10
bios 1 BIOS file available

vendor Award - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
11/27/2008-NF-MCP61-6A61KFK9C-00
Note
Core version
6.00PG
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Size
Filename
Name
Version
15.23
OS support
Windows XP
Size
50.9MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006
File
Logs
Chip
Release date
2008-01-10
File
Logs
Chip
Release date
2002-10-01
File
Logs
Chip
Release date
2006-01-10
File
Logs
image1 Image 1 of 3
image2 Image 2 of 3
image3 Image 3 of 3
