Formosa Industrial UB-320SAI
Logs
chipChipset
cpuSockets
PLCC68 PQFP100
speedFSB speeds
16MHz20MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
8MB
ramRAM type
30-pin SIMM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
maxcpuMulti CPU support
no
connI/O ports
1x
AT Keyboard
cardExpansion slots
6x
16-bit ISA
wrench Known issues
  • Leaky Ni-Cd clock battery

The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta

notes Notes
  • Only supports 9-chip simms
  • Only supports 256K and 1MB simms
Last updated 2023-04-18T20:53:21Z
Board info score is 7.6/10
chip Chips
cpufam CPU family support
bios 1 BIOS file available

vendor AMI - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
20-0200-DB1235-00101111-050591-ARSX-F
Note
Core version
050591
BIOS version
Logs
drv No drivers available
doc No board documents available

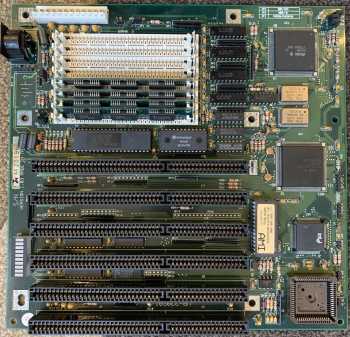

image1 Image 1 of 1 (Douglar)
