FIC SAHARA-II
Logs
chipChipset
cpuSocket
Slot 1 (Slot-242)
speedFSB speed
66MHz
moboForm factor
LPX (max 229 x 330 mm)
dimDimensions
Empty
ramMax VRAM size
8MB
chipCache
None/Integrated in the CPU
ramMax RAM size
256MB
ramRAM types
SDR UDIMM168-pin EDO UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
maxcpuMulti CPU support
no
tag Also known as
  • HP Small PC 20
  • HP Net PC 20
  • HP D7680-6xxxx
connI/O ports
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
Serial
2x
USB 1.x
1x
VGA
cardExpansion slots
1x
16-bit ISA
2x
32-bit PCI
wrench Known issues

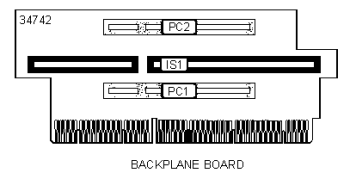

  • Expansion slots are on proprietary riser

The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.

notes Notes

Version with Rage IIc exists

Last updated 2025-06-30T17:12:59Z
Board info score is 9.9/10
bios 6 BIOS files available

vendor Award - 6 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
01/07/1999-i440LX(EX)-2A69JF09C-00
Note
HP OEM, 3D Rage IIc
Core version
4.60PGA
BIOS version
Logs
POST string
12/11/1998-i440LX(EX)-2A69JF09C-00
Note
3D Rage Pro
Core version
4.51PG
BIOS version
Logs
POST string
12/11/1998-i440LX(EX)-2A69JF09C-00
Note
3D Rage IIc
Core version
4.51PG
BIOS version
Logs
POST string
08/21/1998-i440LX(EX)-2A69JF09C-00
Note
3D Rage Pro
Core version
4.51PG
BIOS version
Logs
POST string
08/21/1998-i440LX(EX)-2A69JF09C-00
Note
3D Rage IIc
Core version
4.51PG
BIOS version
Logs
POST string
05/26/1998-i440LX(EX)-2A69JF09C-00
Note
3D Rage IIc
Core version
4.51PG
BIOS version
Logs
drv 18 drivers available
Name
Version
OS support
Size
Filename
Name
Version
5.30
OS support
Windows 9x
Size
2.1MB
Filename
Name
Version
5.11
OS support
Windows 9x Windows NT 4.0
Size
7.6MB
Filename
Name
Version
Empty
OS support
MS-DOS
Size
195KB
Filename
Name
Version
Empty
OS support
OS/2 Warp 3.x OS/2 Warp 4.x
Size
281.5KB
Filename
Name
Version
4.10.1.3000
OS support
Windows 2000 Windows 9x
Size
89.1KB
Filename
Name
Version
Empty
OS support
Windows 9x
Size
2.8MB
Filename
Name
Version
PV2860
OS support
Windows 9x
Size
932.8KB
Filename
Name
Version
2.00
OS support
Windows 3.1x
Size
880.7KB
Filename
Name
Version
Empty
OS support
Windows NT 3.5x
Size
1.7MB
Filename
Name
Version
Empty
OS support
Windows NT 4.0
Size
1.7MB
Filename
Name
Version
3.20.1008
OS support
Windows 2000 Windows 9x Windows XP/2k3
Size
1.4MB
Filename
Name
Version
3.3.0.2
OS support
Windows 9x
Size
569.7KB
Filename
Name
Version
3.02.0.0
OS support
Windows 9x
Size
577.8KB
Filename
Name
Version
3.40.1001
OS support
Windows 2000 Windows 9x Windows XP/2k3
Size
2.2MB
Filename
Name
Version
2.80
OS support
Windows 2000 Windows 9x
Size
1.5MB
Filename
Name
Version
2.80
OS support
Windows 2000 Windows 9x
Size
1.5MB
Filename
Name
Version
4.35
OS support
Windows 9x
Size
1.6MB
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 Warp 3.x Windows 3.1x Windows 9x Windows NT 3.5x
Size
1.6MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1998
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-02
File
Logs
Family
Release date
1998-01
File
Logs
Family
Release date
1998-01
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1999-02
File
Logs
Socket
Release date
1997-05
File
Logs

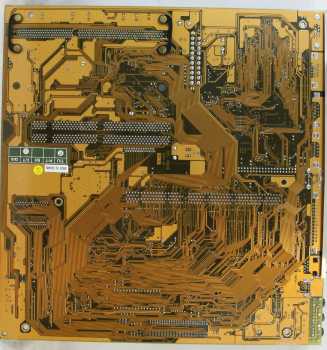

image1 Image 1 of 5 (Microhouse)
image2 Image 2 of 5
image3 Image 3 of 5
image4 Image 4 of 5
image5 Image 5 of 5
