FIC PAG-2130 (V1.1)
Logs
chipChipset
cpuSocket
Socket 7 (PGA321)
speedFSB speeds
50MHz60MHz66MHz95MHz100MHz
moboForm factor
MicroATX (max 244 x 244 mm)
dimDimensions
Empty
ramMax VRAM size
8MB
chipCache
512KB1MB2MB
ramMax RAM size
768MB
ramRAM type
SDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
maxcpuMulti CPU support
no
tag Also known as
connI/O ports
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
4x
USB 1.x
1x
VGA
cardExpansion slots
1x
16-bit ISA
4x
32-bit PCI
notes Notes

SA/SB bios versions: PAG2130(PCB1.2/1.3) SA =Vt82C686A Clock Gen + ICW156 PAG2130(PCB1.3A/2.0) SB =Vt82C686A Clock Gen + ICS9248-127

Cache can be upgraded to 2MB L2 by replacing 2x LP61LF6464 SRAM chips with 2x EliteMT LP61LF64128F-4 and replacing TAG SRAM with 1x 64Kx8 (SOJ-32) SRAM.

Last updated 2024-10-15T09:20:25Z
Board info score is 9.4/10
bios 9 BIOS files available

vendor Award - 9 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
08/29/2000-MVP4-686A-2A5LHF0AC-00
Note
Fix Cyrix M2 CPU hang, show PR rates for Cyrix/AMD
Core version
4.51PG
BIOS version
Logs
POST string
01/10/2001-MVP4-686A-2A5LHF0AC-00
Note
beta
Core version
4.51PG
BIOS version
Logs
POST string
07/31/2000-MVP4-686A-2A5LHF0AC-00
Note
beta
Core version
4.51PG
BIOS version
Logs
POST string
01/20/2000-MVP4-686A-2A5LHF0AC-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
11/16/1999-MVP4-686A-2A5LHF0AC-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
01/10/2001-MVP4-686A-2A5LHF0AC-00
Note
beta
Core version
4.51PG
BIOS version
Logs
POST string
08/03/2000-MVP4-686A-2A5LHF0AC-00
Note
beta
Core version
4.51PG
BIOS version
Logs
POST string
11/16/1999-MVP4-686A-2A5LHF0AC-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
06/01/1999-MVP4-686A-2A5LHF0AC-00
Note
Core version
4.51PG
BIOS version
Logs
drv 14 drivers available
Name
Version
OS support
Size
Filename
Name
Version
V3.00a
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP
Size
1.9MB
Filename
Name
Version
5.70d
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP
Size
3.9MB
Filename
Name
Version
4.43V
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP
Size
1.1MB
Filename
Name
Version
4.35V
OS support
Windows 2000 Windows 9x Windows XP
Size
973.7KB
Filename
Name
Version
4.13.01.3124
OS support
Windows 9x
Size
4.9MB
Filename
Name
Version
4.13.01.3124
OS support
Windows 9x
Size
4.9MB
Filename
Name
Version
4.11.01.2182
OS support
Windows 9x
Size
3.3MB
Filename
Name
Version
4.11.01.2182
OS support
Windows 9x
Size
3.3MB
Filename
Name
Version
4.03.00.3120
OS support
Windows NT 4.0
Size
8.2MB
Filename
Name
Version
4.03.00.3120
OS support
Windows NT 4.0
Size
8.2MB
Filename
Name
Version
2.20a
OS support
MS-DOS OS/2 Warp 4.x Windows 9x Windows NT 4.0 Windows XP
Size
4.3MB
Filename
Name
Version
2.10c
OS support
MS-DOS OS/2 Warp 4.x Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP
Size
4.3MB
Filename
Name
Version
1.08
OS support
Windows 2000 Windows 9x
Size
553.6KB
Filename
Name
Version
Empty
OS support
MS-DOS
Size
227.7KB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1999-11-02
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2000-02-01
File
Logs
Family
Release date
File
Logs
Family
Release date
2000-09
File
Logs
Family
Release date
1999-12
File
Logs
Family
Release date
2000-04
File
Logs
Family
Release date
2000-11
File
Logs
Family
Release date
1997-06
File
Logs
Family
Release date
1998-01
File
Logs
Family
Release date
1997-06
File
Logs
Family
Release date
1997-08
File
Logs

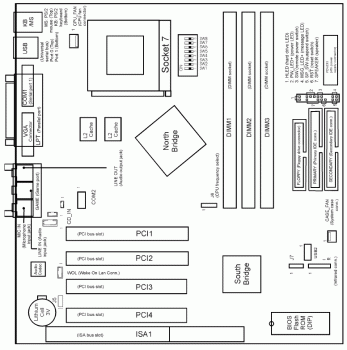

image1 Image 1 of 4
image2 Image 2 of 4 (gorilla.bas)
image3 Image 3 of 4 (Andrew Spode)
image4 Image 4 of 4 (Andrew Spode)
