FIC PA-2002
Chipset
Socket
FSB speeds 50MHz60MHz66MHz
Form factorBaby AT (max 220 x 330 mm)
Dimensions274mm x 218mm
Cache
256KB512KB1MB
Max RAM size
128MB
RAM types 72-pin FPM72-pin EDO72-pin BEDO
PSU connector
I/O ports1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
PS/2 mouse
1x
Parallel
2x
Serial
Expansion slots3x
16-bit ISA
4x
32-bit PCI
Notes:
DOC:14660
Split voltage operation for MMX CPUs requires desoldering the jumper wires from the VRM footprint and installing an appropriate VRM.
Last updated 2023-12-01T15:46:13Z
Board info score is 9.4/10
Chipset partsSuper I/O chips
CPU family support
8 files available
Vendor: Award [8 entries]
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
06/04/96-VT82C570M-2A5L9F09C-00
Note
y2k ready
Core version
4.51PG
BIOS version
Logs
POST string
12/14/96-VT82C570M-2A5L9F09C-00
Note
beta
Core version
4.51PG
BIOS version
Logs
No drivers available
2 board documents available
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs

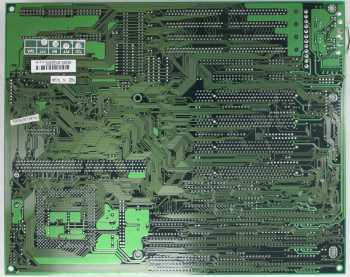

Image 1 of 6 (Microhouse)
Image 2 of 6 (Computer Retro)
Image 3 of 6 (Clous)
Image 4 of 6
Image 5 of 6 (Computer Retro)
Image 6 of 6 (Clous)
