FIC AZ31 KT133A (Compaq OEM)
Logs
chipChipset
cpuSocket
Socket A (PGA462)
speedFSB speeds
200 MHz266 MHz
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
225mm x 245mm
chipCache
None/Integrated in the CPU
ramMax RAM size
1 GB
ramRAM type
SDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
tag Also known as
connI/O ports
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
Serial
2x
USB 1.x
cardExpansion slots
3x
32-bit PCI
1x
Universal AGP
notes Notes

Used in the following models: 5011DK, 5011EA, 5011SE, 5012EA, 5016EA, 5016NL, 5016SE, 5016SZ, 5017DK, 5018EA, 5020NL, 5020PT, 5024FR, 5028BE, 5028EA, 5029DK, 5029EA, 5030EA, 5031EA, 5032BE, 5032EA, 5032SZ, 5WV210, 5WV230, 5WV232, 5WV233, 5WV235, 5WV236, 5WV237, 5WV250, 5WV251, 5WV252, 5WV253, 5WV254, 5WV255, 5WV256, 5WV257, 5WV260, 5WV261, 5WV267, 5WV270, 5WV271, 5WV272, 5WV275, 5WV277, 5WV280, 5WV282, 5WV283, 5WV284, 5WV285, 5WV287, 5WV290, 5WV293, 5WV294, 5WV295, 5WV296, 5WV296, 5WV297, 5WV310, 5WV311, 5WV312, 5WV320, 5WV324, 5WV330, 5WV334, 5WV335, 5WV336, 5WV337, 5WV338, 5WV339, 5WV340, 5WV341, 5WV344, 5WV350, 5WV374, 5WV378, 5WV390, 5WV391, 5WV394, 5WV396, 5WV397, 5WV727

Last updated 2025-10-08T18:03:10Z
Board info score is 8.8/10
bios 1 BIOS file available

vendor Compaq - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
786K3
BIOS version
Logs
drv 11 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
4.02.0017
Arch
x86
OS support
Windows NT 4.0
Size
5.5MB
Filename
Name
Version
4.10.2225
Arch
x86
OS support
Windows 9x
Size
4.6MB
Filename
Name
Version
5.00.2238
Arch
x86
OS support
Windows 2000 Windows 9x
Size
3MB
Filename
Name
Version
4.49V
Arch
x86
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Size
1.4MB
Filename
Name
Version
4.43V
Arch
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Size
1.1MB
Filename
Name
Version
N/A
Arch
x86
OS support
MS-DOS
Size
227.7KB
Filename
Name
Version
5.70d
Arch
x86
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Size
3.9MB
Filename
Name
Version
V3.00a
Arch
x86
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Size
1.9MB
Filename
Name
Version
1.08
Arch
x86
OS support
Windows 2000 Windows 9x
Size
553.6KB
Filename
Version
Arch
OS support
Size
Filename
Version
Arch
OS support
MS-DOS OS/2 Warp 4.x Windows 9x Windows NT 4.0 Windows XP/2k3
Size
4.3MB
Filename
Version
Arch
x86
OS support
MS-DOS OS/2 Warp 4.x Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Size
4.3MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

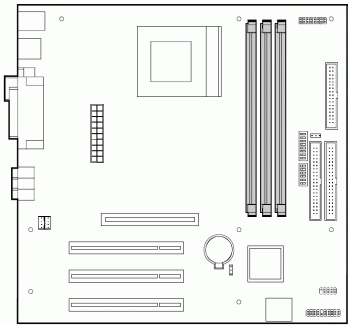

image1 Image 1 of 2 (evasive)
image2 Image 2 of 2 (Carlos S. M.)
