ECS P6S5AT
Logs
chipChipset
cpuSocket
Socket 370 (PGA370)
speedFSB speeds
66MHz100MHz133MHz150MHz166MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 220mm
chipCache
None/Integrated in the CPU
ramMax RAM size
2GB(unofficially)1.5GB(officially)
ramRAM types
DDR UDIMMSDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
2x
USB 1.x
cardExpansion slots
1x
3.3V AGP
5x
32-bit PCI
1x
AMR
notes Notes

Revision 1.3 does not support Tualatin CPUs.
Supports 150 and 166MHz FSB via OC and BIOS patching, is not officially supported.

Last updated 2024-11-29T16:03:52Z
Board info score is 9.6/10
bios 10 BIOS files available

vendor AMI - 10 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
62-1102-001437-00101111-071595-SIS635-M700
Note
M700
Core version
071595
BIOS version
Logs
POST string
62-1102-001437-00101111-071595-SIS635-P6S5AT
Note
Core version
071595
BIOS version
Logs
POST string
62-1008-001437-00101111-071595-SIS635-LH-6SIXB
Note
LH-6SIXB
Core version
071595
BIOS version
Logs
POST string
62-0914-001437-00101111-071595-SIS635-P6S5AT
Note
Core version
071595
BIOS version
Logs
POST string
62-0830-001131-00101111-071595-SIS635-P6S5AT
Note
Core version
071595
BIOS version
Logs
POST string
62-0830-001131-00101111-071595-SIS635-P6S5AT
Note
unofficial patch, added FSB speeds: 138, 150 and 166MHz
Core version
071595
BIOS version
Logs
POST string
62-0605-001437-00101111-071595-SIS635-P6S5AT
Note
Core version
071595
BIOS version
Logs
POST string
62-0508-001437-00101111-071595-SIS635-M700
Note
M700
Core version
071595
BIOS version
Logs
POST string
62-0430-001437-00101111-071595-SIS635-M700
Note
M700
Core version
071595
BIOS version
Logs
POST string
62-0411-001437-00101111-071595-SIS635-M700
Note
M700
Core version
071595
BIOS version
Logs
drv 5 drivers available
Name
Version
OS support
Size
Filename
Name
Version
1.3
OS support
Windows 9x
Size
19KB
Filename
Name
Version
1.3
OS support
Windows NT 4.0
Size
16.5KB
Filename
Name
Version
1.2
OS support
Windows 2000
Size
31.9KB
Filename
Name
Version
1.21
OS support
Windows 2000 Windows 9x Windows XP
Size
Empty
Filename
Name
Version
2.04A
OS support
Windows 2000 Windows 9x Windows XP
Size
Empty
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2000-02
File
Logs
Family
Release date
2000-02
File
Logs
Family
Release date
2002-06
File
Logs
Family
Release date
2001-06
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1997-05
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1999-04
File
Logs
Socket
Release date
1999-12
File
Logs
Socket
Release date
2000-07
File
Logs

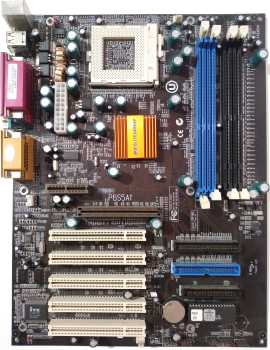

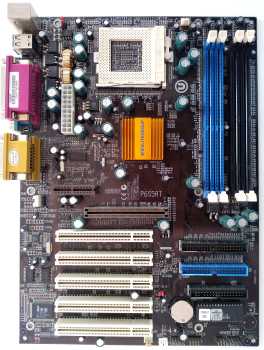

image1 Image 1 of 11

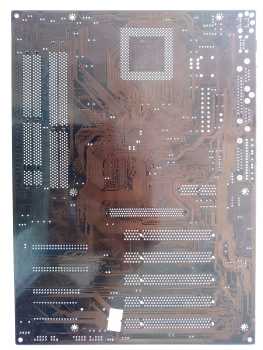

image2 Image 2 of 11 (VooDooMan)

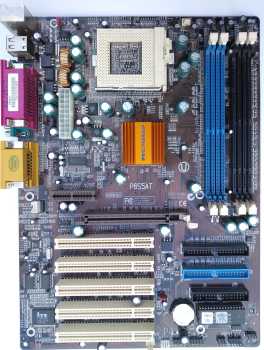

image3 Image 3 of 11 (VooDooMan)

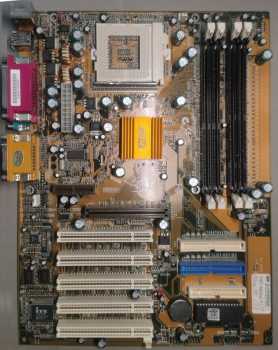

image4 Image 4 of 11 (VooDooMan)

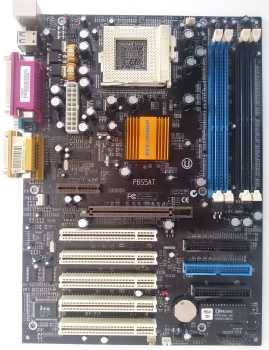

image5 Image 5 of 11 (VooDooMan)

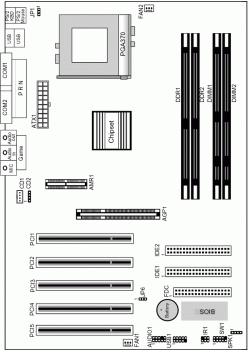

image6 Image 6 of 11 (VooDooMan)

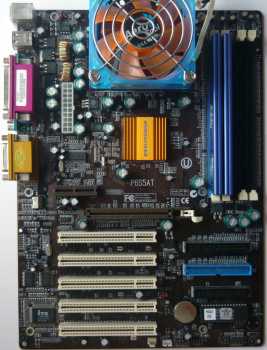

image7 Image 7 of 11 (Jenot)

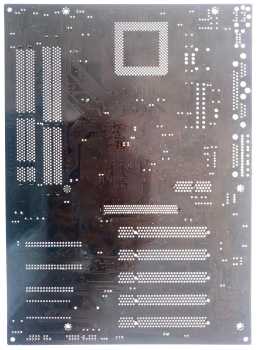

image8 Image 8 of 11
image9 Image 9 of 11 (VooDooMan)
image10 Image 10 of 11 (VooDooMan)
image11 Image 11 of 11 (VooDooMan)
