ECS MCP61PM-HM REV: 1.0B early version (HP OEM)
Logs
chipChipset
cpuSocket
Socket AM2 (mPGA940)
speedFSB speed
Empty
moboForm factor
MicroATX (max 244 x 244 mm)
dimDimensions
244mm x 244mm
ramMax VRAM size
256MB
chipCache
None/Integrated in the CPU
ramMax RAM size
4GB(DDR2-800)
ramRAM type
DDR2 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
  • HP Iris8-GL6
  • Compaq Presario SR5510F system board

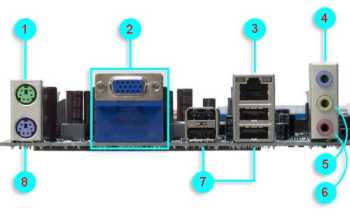

connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
2x
SATA II
1x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
2x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
notes Notes

  • Internal name HP Iris was later reused for a series of unrelated SFF AMD motherboards.

  • CPU support limited to 65W.

Last updated 2023-10-31T15:58:46Z
Board info score is 7.7/10
bios 0 BIOS files available
drv 2 drivers available
Name
Version
OS support
Size
Filename
Name
Version
15.23
OS support
Windows XP
Size
50.9MB
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP
Size
30.7MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-04-25
File
Logs
Chip
Release date
2008-04-07
File
Logs
Chip
Release date
File
Logs

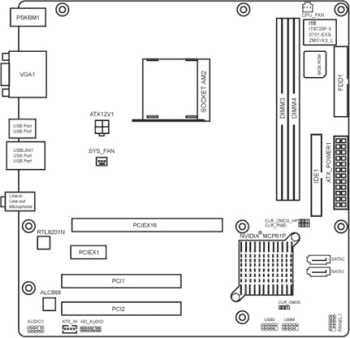

image1 Image 1 of 3
image2 Image 2 of 3
image3 Image 3 of 3
