ECS MCP61PM-HM REV: 2.1 (HP OEM)
Logs
Chipset
Sockets
FSB speed Empty
Form factorMicroATX (max 244 x 244 mm)
Dimensions244mm x 244mm
Max VRAM size256MB
Cache
None/Integrated in the CPU
Max RAM size
8GB(DDR2-800)
RAM type DDR2 UDIMM
PSU connector

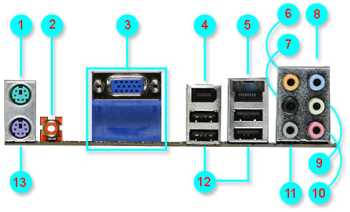

I/O ports1x
3.5mm Audio Combo
2x
FireWire 400
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
1x
S/PDIF
4x
SATA II
8x
USB 2.0
1x
VGA
Expansion slots1x
32-bit PCI
2x
PCIe x1
1x
PCIe x16
Known issues
- Faulty or Leaking Electrolytic Capacitors
Some motherboards may contain faulty or leaking electrolytic capacitors, which can negatively impact system performance or stability. These capacitors may exhibit issues such as bulging, leaking, or even exploding, potentially damaging other components on the motherboard. Users should inspect their capacitors regularly and replace any that are faulty or leaking to avoid damage or system instability.
Notes
-
Used in HP Pavilion Media Center m8400f and a large number of HP desktops.
-
CPU support limited to 95W.
Last updated 2024-03-13T13:34:11Z
Board info score is 9/10
Chips
-
Chipset part
-
FireWire ctrl.
-
Sensing / Monitoring
CPU family support
3 BIOS files available
Award - 3 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
1 driver available
Name
Version
OS support
Size
Filename
Name
Version
15.23
OS support
Windows XP
Size
50.9MB
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs

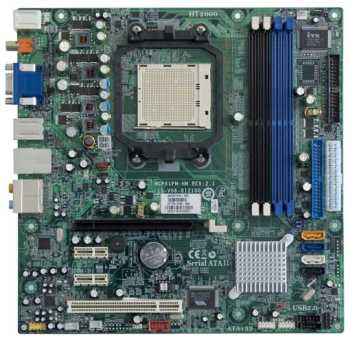

Image 1 of 4

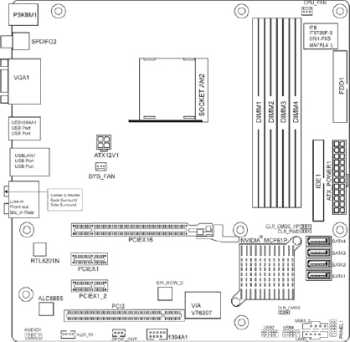

Image 2 of 4 (fire219)
Image 3 of 4
Image 4 of 4
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
