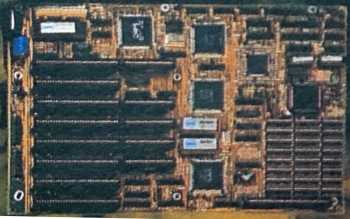

ECS ECS-386SX P9
Logs
chipChipset
cpuSockets
PLCC68 PQFP100
speedFSB speed
16MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
330mm x 225mm
chipCache
None/Integrated in the CPU
ramMax RAM size

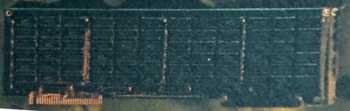

10MB(2MB onboard, 8MB on add-on card)
ramRAM types
DIP-20 (4bit)DIP-16 (1bit)
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
connI/O ports
1x
AT Keyboard
cardExpansion slots
5x
16-bit ISA
3x
8-bit ISA
wrench Known issues
  • Leaky Ni-Cd clock battery

The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta

Last updated 2024-11-01T13:43:17Z
Board info score is 6.6/10
bios 0 BIOS files available
drv 1 driver available
Name
Version
OS support
Size
Filename
Name
Version
2.2.0
OS support
MS-DOS
Size
40KB
Filename
image1 Image 1 of 7 (Elke Wehmer)
image2 Image 2 of 7 (Elke Wehmer)
image3 Image 3 of 7 (Elke Wehmer)
image4 Image 4 of 7 (Elke Wehmer)
image5 Image 5 of 7 (Elke Wehmer)
image6 Image 6 of 7
image7 Image 7 of 7
