ECS 8517 V3.3
Logs
chipChipset
cpuSockets
PLCC68 PQFP100
speedFSB speed
40MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
Empty
ramRAM type
30-pin SIMM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
maxcpuMulti CPU support
no
connI/O ports
1x
AT Keyboard
cardExpansion slots
5x
16-bit ISA
1x
8-bit ISA
wrench Known issues
  • Leaky Ni-Cd clock battery

The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta

Last updated 2024-08-01T16:20:44Z
Board info score is 7.2/10
chip Chips
cpufam CPU family support
bios 2 BIOS files available

vendor Mr. BIOS - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
ACER31E
Note
V058B31E
Core version
1.40
BIOS version
Logs

vendor AMI - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
40-0000-ZZ1218-00101111-070791-ALI1217-0
Note
Core version
070791
BIOS version
Logs
drv No drivers available
doc No board documents available

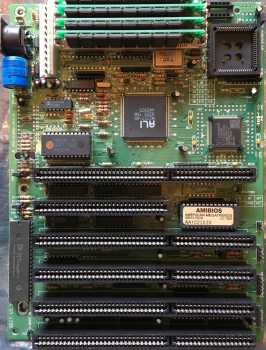

image1 Image 1 of 2 (Horun)

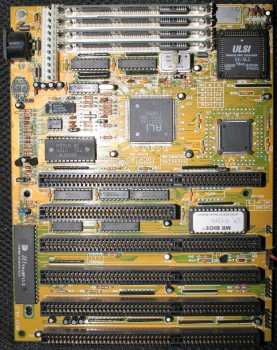

image2 Image 2 of 2 (alvaro84)
