DTK PKM-0033S
Logs
chipChipset
cpuSocket
Socket 3 (PGA237)
speedFSB speeds
20MHz25MHz33MHz40MHz50MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
250mm x 220mm
chipCache
64KB128KB256KB512KB1MB
ramMax RAM size
128MB
ramRAM type
72-pin FPM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
maxcpuMulti CPU support
no
tag Also known as
connI/O ports
1x
AT Keyboard
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
Parallel
2x
Serial
cardExpansion slots
4x
16-bit ISA
4x
32-bit PCI
wrench Known issues
  • Leaky Ni-Cd clock battery

The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta

Last updated 2024-04-08T16:52:52Z
Board info score is 9.8/10
chip Chips
cpufam CPU family support
bios 3 BIOS files available

vendor Award - 3 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
12/11/95-SiS-496-497/A/B-2A4IBG3IC-00
Note
Core version
4.50PG
BIOS version
Logs
POST string
11/07/95-SiS-496-497/A/B-2A4IBG3IC-00
Note
Core version
4.50PG
BIOS version
Logs
POST string
09/18/95-SiS-496-497/A/B-2A4IBG3IC-00
Note
Core version
4.50PG
BIOS version
Logs
drv 3 drivers available
Name
Version
OS support
Size
Filename
Name
Version
BC318
OS support
MS-DOS OS/2 Warp 3.x Windows 3.1x Windows NT 3.1 Windows NT 3.5x Windows NT 4.0
Size
Empty
Filename
Name
Version
BC318
OS support
MS-DOS OS/2 Warp 3.x Windows 3.1x Windows NT 3.1 Windows NT 3.5x Windows NT 4.0
Size
Empty
Filename
Name
Version
BC310
OS support
MS-DOS NetWare Server 3 OS/2 1.x Windows 3.0 Windows NT 3.1
Size
97.9KB
Filename
doc 3 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-04
File
Logs
Family
Release date
File
Logs
Family
Release date
1996-03
File
Logs
Family
Release date
1995-07
File
Logs
Family
Release date
1995-10
File
Logs
Family
Release date
1989-04
File
Logs
Family
Release date
1990
File
Logs
Family
Release date
1992-10
File
Logs
Family
Release date
1992-02
File
Logs

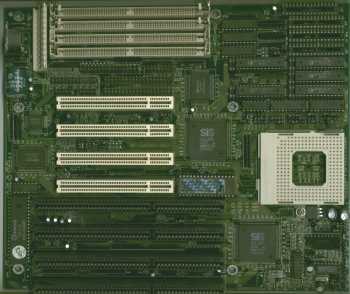

image1 Image 1 of 4 (Microhouse)

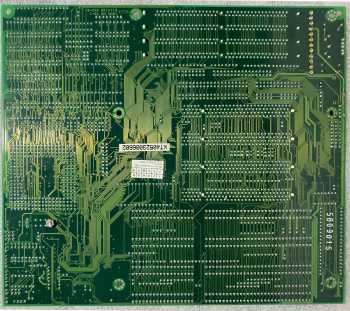

image2 Image 2 of 4 (ThisOldTech)
image3 Image 3 of 4 (ThisOldTech)
image4 Image 4 of 4
