DFI Lanparty NF2 Ultra B
Logs
chipChipset
cpuSocket
Socket A (PGA462)
speedFSB speeds
266MHz333MHz400MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 244mm
chipCache
None/Integrated in the CPU
ramMax RAM size
3GB
ramRAM type
DDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
  • DFI LP NFII ULTRA B
connI/O ports
1x
3.5mm Audio Combo
3x
FireWire 400
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
RJ-45 LAN
1x
S/PDIF
4x
SATA I
1x
Serial
4x
USB 2.0
cardExpansion slots
1x
1.5V AGP
5x
32-bit PCI
wrench Known issues
  • Faulty or Leaking Electrolytic Capacitors

Some motherboards may contain faulty or leaking electrolytic capacitors, which can negatively impact system performance or stability. These capacitors may exhibit issues such as bulging, leaking, or even exploding, potentially damaging other components on the motherboard. Users should inspect their capacitors regularly and replace any that are faulty or leaking to avoid damage or system instability.

  • ROM Corruption

This device is known for occasionally corrupting its configuration EEPROM. This may lead to the card malfunctioning or not being detected, or even the system refusing to boot. The 'BIOS/Firmware' section may have a dump of this EEPROM that can be used to restore functionality.

notes Notes

It is recommended to immediately replace VRM Caps with high quality 6.3v 3300uf capacitors (Do be carefull as the VIAs on this board are very easy to tear with heat) - All KZG caps that came with this board have all failed

It is recommended to install a Northbridge fan and repaste the northbridge due to poor factory paste application

It is recommended to have a BIOS programmer on hand when Overclocking this board , especially when setting memory timings as it is so easy to corrupt the BIOS, Due to the way nvidia boards saves ROM settings.

Volt mods - https://www.techpowerup.com/articles//overclocking/voltmods/113/1

Last updated 2025-05-04T14:30:30Z
Board info score is 9.8/10
bios 8 BIOS files available

vendor Award - 8 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
11/24/2004-nVidia-nForce-6A61BD4EC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
06/19/2004-nVidia-nForce-6A61BD4EC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
11/27/2003-nVidia-nForce-6A61BD4EC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
10/15/2003-nVidia-nForce-6A61BD4EC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
09/30/2003-nVidia-nForce-6A61BD4EC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
Note
TicTac modded BIOSes
Core version
6.00PG
BIOS version
Logs
POST string
Note
Hellfire modded BIOSes
Core version
6.00PG
BIOS version
Logs
POST string
Note
DFI/Oskar Wu modded BIOSes
Core version
6.00PG
BIOS version
Logs
drv 6 drivers available
Name
Version
OS support
Size
Filename
Name
Version
5.10
OS support
Windows 2000 Windows XP
Size
30.6MB
Filename
Name
Version
5.10
OS support
Windows 2000 Windows XP
Size
30.6MB
Filename
Name
Version
4.27
OS support
Windows 9x
Size
6.9MB
Filename
Name
Version
4.27
OS support
Windows 9x
Size
6.9MB
Filename
Name
Version
4.27
OS support
Windows 9x
Size
6.9MB
Filename
Name
Version
A4.06
OS support
Windows 2000 Windows 9x Windows XP
Size
17.9MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2002-10-25
File
Logs

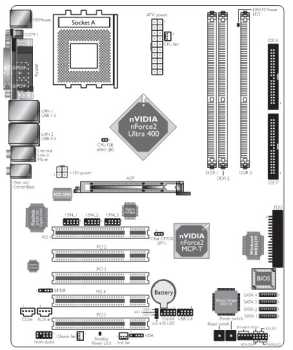

image1 Image 1 of 11 (mR_Slug)

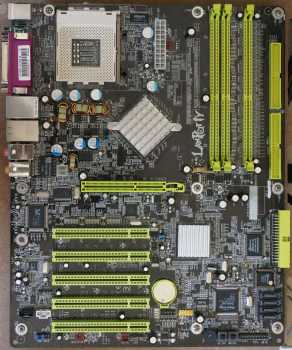

image2 Image 2 of 11 (Motherboard Continuum)

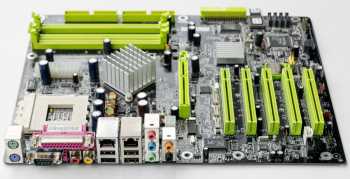

image3 Image 3 of 11 (Tzk)

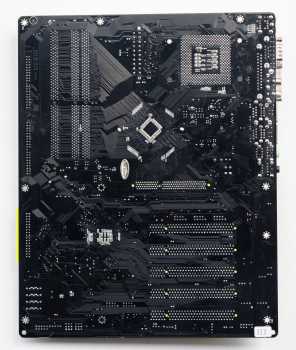

image4 Image 4 of 11 (Motherboard Continuum)
image5 Image 5 of 11
image6 Image 6 of 11 (Motherboard Continuum)
image7 Image 7 of 11
image8 Image 8 of 11
image9 Image 9 of 11
image10 Image 10 of 11
image11 Image 11 of 11 (Ashley98)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
