DataExpert EXP8449 1.1
Chipset
Socket
FSB speeds 20MHz25MHz33MHz40MHz50MHz
Form factorBaby AT (max 220 x 330 mm)
Dimensions220mm x 220mm
Cache
128KB256KB512KB
Max RAM size
128MB
RAM types 72-pin FPM72-pin EDO
PSU connector
Multi CPU supportno
I/O ports1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
Parallel
2x
Serial
Expansion slots4x
16-bit ISA
3x
32-bit PCI
Known issues
- Leaky Ni-Cd clock battery
The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta
Notes
For AMD 5x86 to work, you need to set up the board for AMD Plus as per manual, then set JP23 to off and JP36 to 2-3.
Last updated 2024-03-22T14:50:54Z
Board info score is 9.1/10
Chips
-
Chipset part
CPU family support
3 BIOS files available
AMI - 3 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
41-C100-001107-00101111-101094-ALI87/89-E
Note
Core version
101094
BIOS version
Logs
POST string
41-C100-001107-00101111-101094-ALI87/89-E
Note
Core version
101094
BIOS version
Logs
POST string
41-C100-001107-00101111-101094-ALI87/89-E
Note
Core version
101094
BIOS version
Logs
1 driver available
Name
Version
OS support
Size
Filename
Name
Version
1.06a
OS support
MS-DOS
OS/2 Warp 3.x
SCO Unix - OpenServer
Windows 3.1x
Windows NT 3.5x
Size
104.9KB
Filename
2 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Image 1 of 3 (Microhouse)

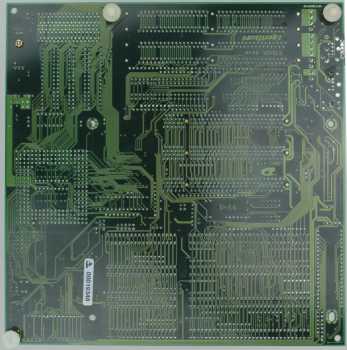

Image 2 of 3 (Clous)
Image 3 of 3 (Clous)
