Compaq DeskPro 2000 system board (5166/5200/5233)
Chipset
Socket
FSB speeds 50 MHz60 MHz66 MHz
Form factorLPX (max 229 x 330 mm)
Dimensions229 mm x 330 mm
Max VRAM size2 MB
Cache
256KB512KB
Max RAM size
384 MB
RAM types SDR UDIMM168-pin EDO UDIMMSDR UDIMM ECC
PSU connector
Also known as
- Compaq 237716-002
I/O ports1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
2x
USB 1.x
1x
VGA
Expansion slots3x
16-bit ISA
3x
32-bit PCI
Known issues
- Expansion slots are on proprietary riser
The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.
Notes
The BIOS setup is stored on a hard drive. Look for SP15674 from HP.
237716-001 is the part number for the 256kB COAST module for this board
Last updated 2025-06-28T17:40:02Z
Board info score is 9.8/10
Chips
-> Chipset part
-> Clock Synth / PLL
-> Super I/O
-> Video
4 BIOS files available
Compaq - 4 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
3 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
2.41.07
Arch
x86
OS support
Windows 9x
Size
183.6KB
Filename
Name
Version
2.00.18
Arch
x86
OS support
Windows NT 4.0
Size
177.7KB
Filename
Name
Version
4.38V
Arch
OS support
Windows 2000
Windows NT 4.0
Windows XP/2k3
Size
1.1MB
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1997-05-13
File
Logs
Family
Release date
File
Logs
Family
Release date
1998-01
File
Logs
1 other file available
Title
File
Logs

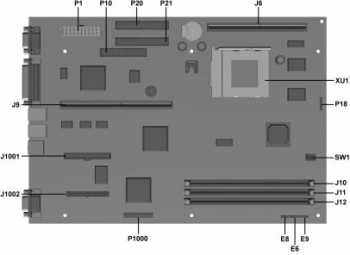

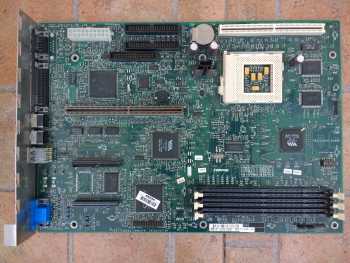

Image 1 of 8
Image 2 of 8 (dataino.it)
Image 3 of 8 (VanoRu)
Image 4 of 8 (dataino.it)
Image 5 of 8 (Rob Jansen)
Image 6 of 8
Image 7 of 8
Image 8 of 8
