CDTek GH286 G2 II
Logs
chipChipset
cpuSockets
DIP40 PLCC68
speedFSB speeds
10MHz12.5MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
220mm x 220mm
chipCache
None/Integrated in the CPU
ramMax RAM size
4MB
ramRAM types
30-pin SIMM30-pin SIPPDIP-18 (1bit)DIP-16 (1bit)
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
maxcpuMulti CPU support
no
tag Also known as
  • Unknown HT101A 286
  • CDTek GH-286
connI/O ports
1x
AT Keyboard
cardExpansion slots
5x
16-bit ISA
1x
8-bit ISA
wrench Known issues
  • Leaky Ni-Cd clock battery

The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta

notes Notes

Both the manuafacturer manual and the actual board show SIMMs, not SIPPs. The manual however mentions both SIMM/SIP for the memory slots.

Last updated 2024-12-25T22:34:58Z
Board info score is 8.9/10
chip Chips
cpufam CPU family support
bios 4 BIOS files available

vendor AMI - 4 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
D286-1435-040990-KF
Note
Core version
040990
BIOS version
Logs
POST string
D286-1430-040990
Note
Core version
040990
BIOS version
Logs
POST string
D286-1435-040990-K8
Note
Core version
040990
BIOS version
Logs
POST string
D286-1435-040990-K0
Note
Core version
040990
BIOS version
Logs
drv No drivers available
doc 4 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

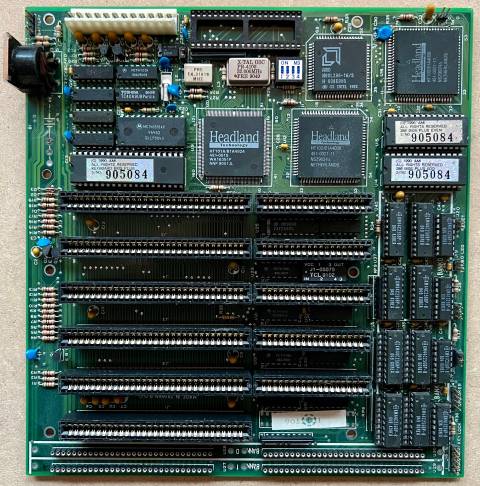

image1 Image 1 of 5 (Microhouse)
