Biostar A870 Ver:6.0
Logs
chipChipset
cpuSocket
Socket AM3 (mPGA941)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 205mm
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
1x
3.5mm Audio Combo
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
6x
SATA III
1x
Serial
8x
USB 2.0
cardExpansion slots
2x
32-bit PCI
2x
PCIe x1
1x
PCIe x16
1x
PCIe x16 @ x4
Last updated 2025-12-19T21:44:14Z
Board info score is 8.6/10
bios 2 BIOS files available

vendor AMI - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
64-0100-000001-00101111-092811-ATHLON64-87XBD001
Note
Core version
80015
BIOS version
Logs
POST string
64-0100-000001-00101111-011911-ATHLON64-87XBD001
Note
Core version
80015
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP
Size
30.7MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
2011-01-17
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

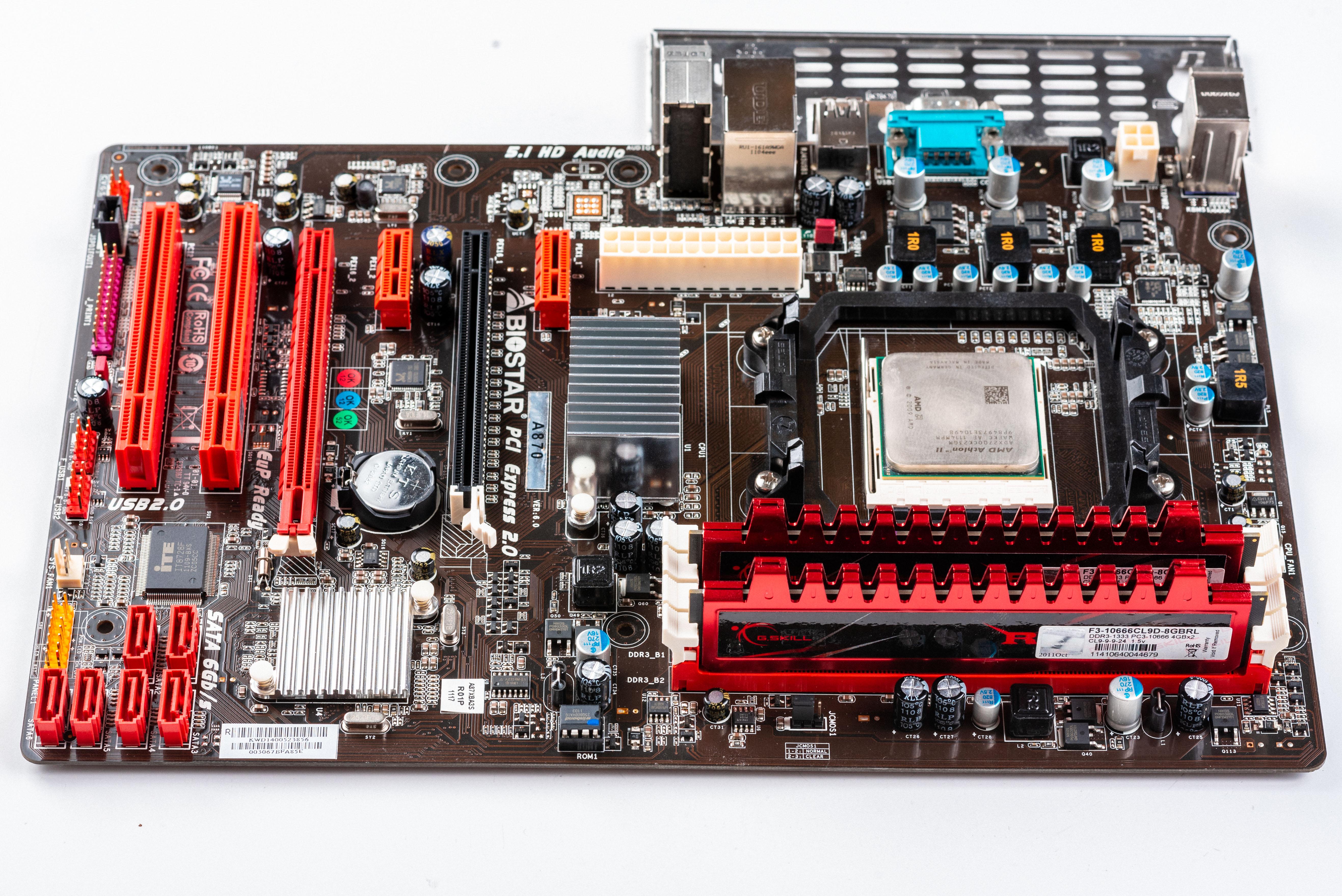

image1 Image 1 of 6 (Motherboard Continuum)

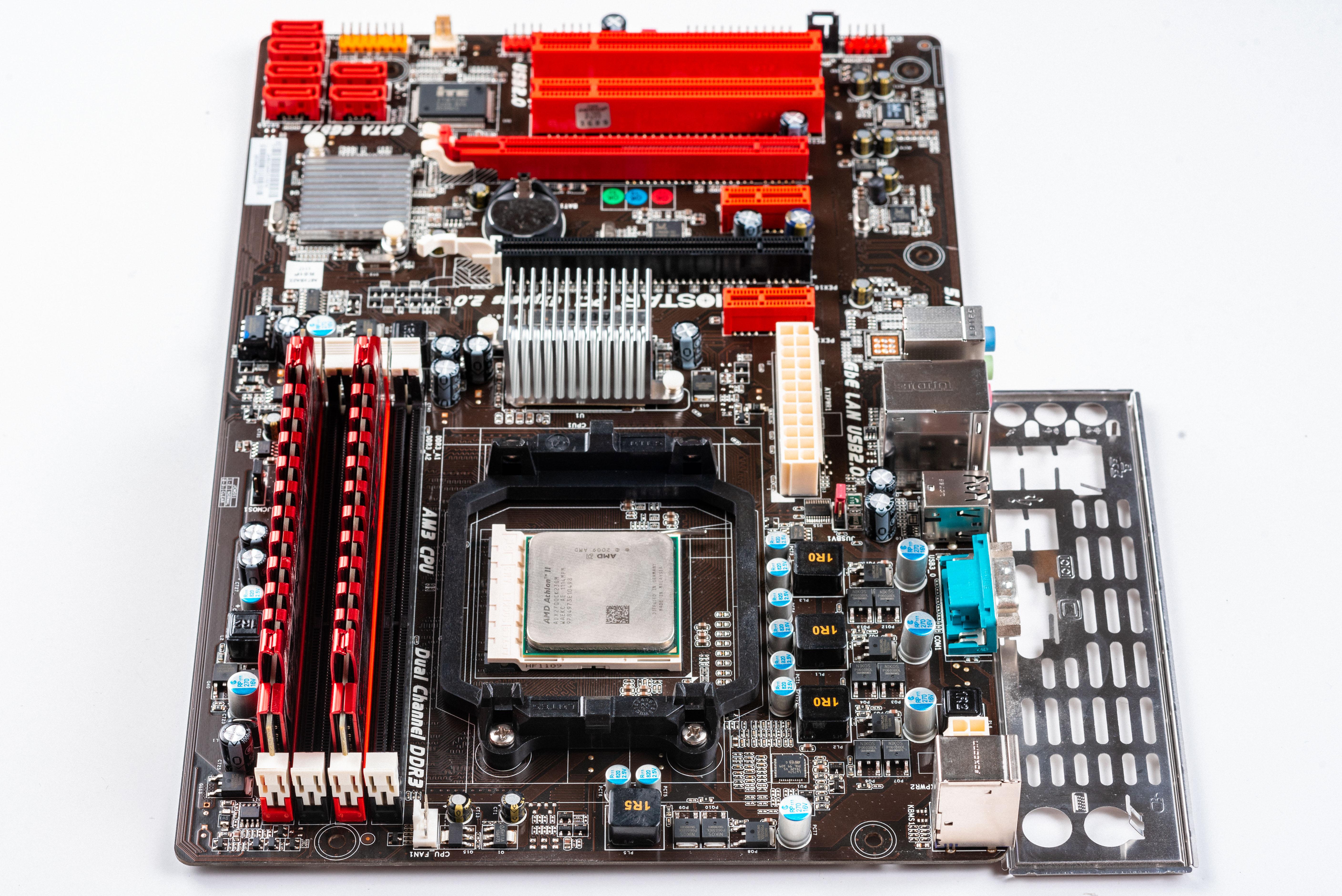

image2 Image 2 of 6 (Motherboard Continuum)

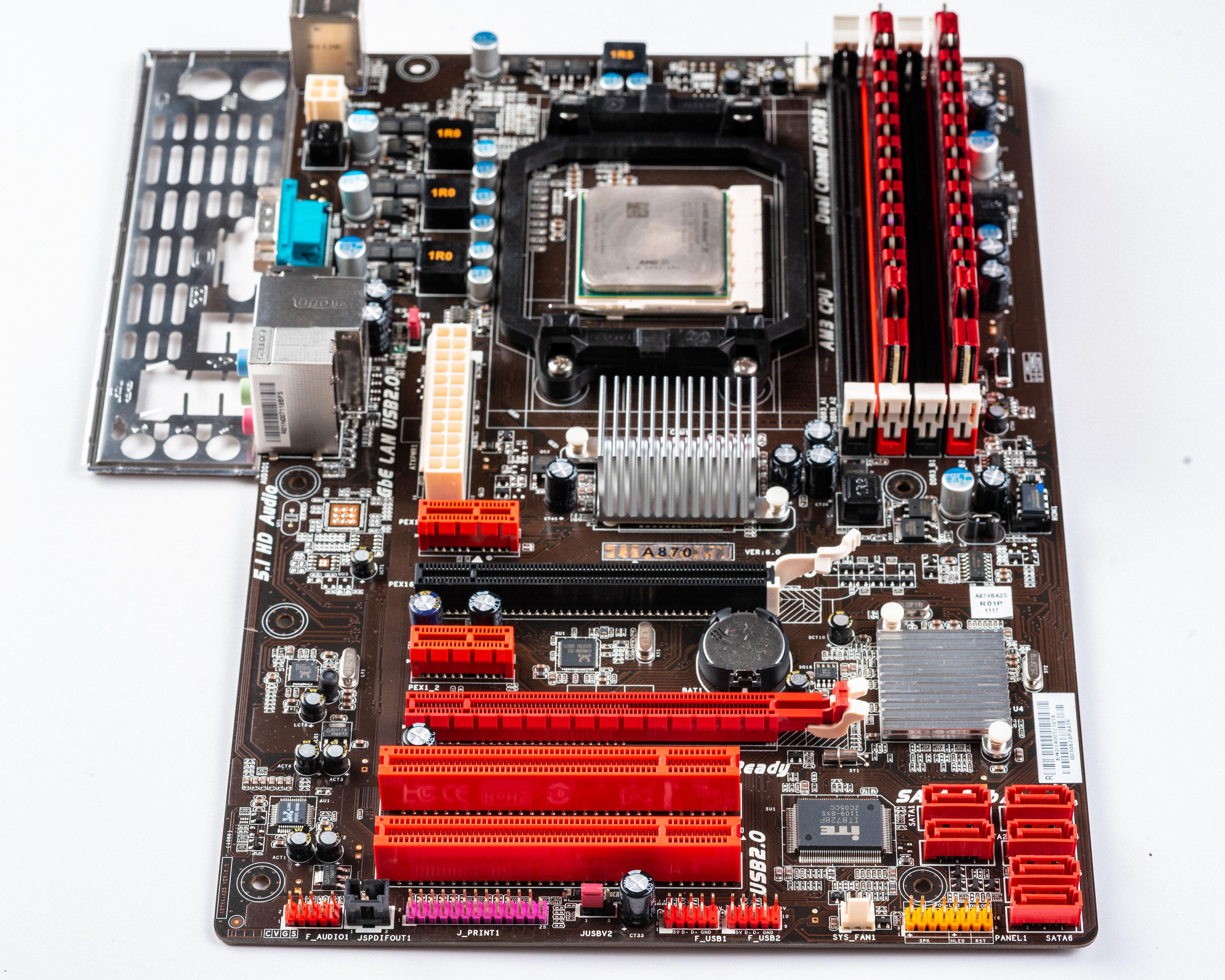

image3 Image 3 of 6 (Motherboard Continuum)

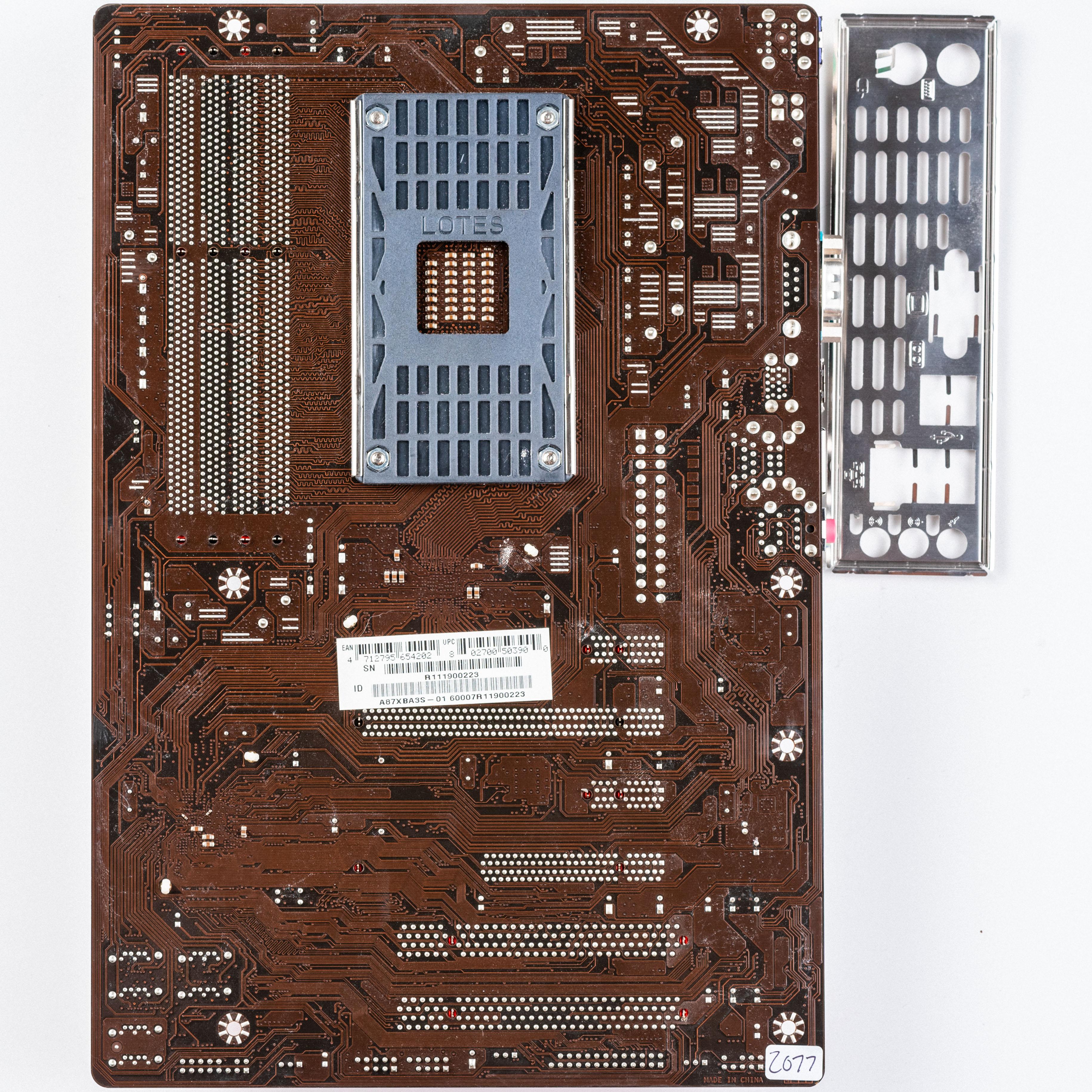

image4 Image 4 of 6 (Motherboard Continuum)

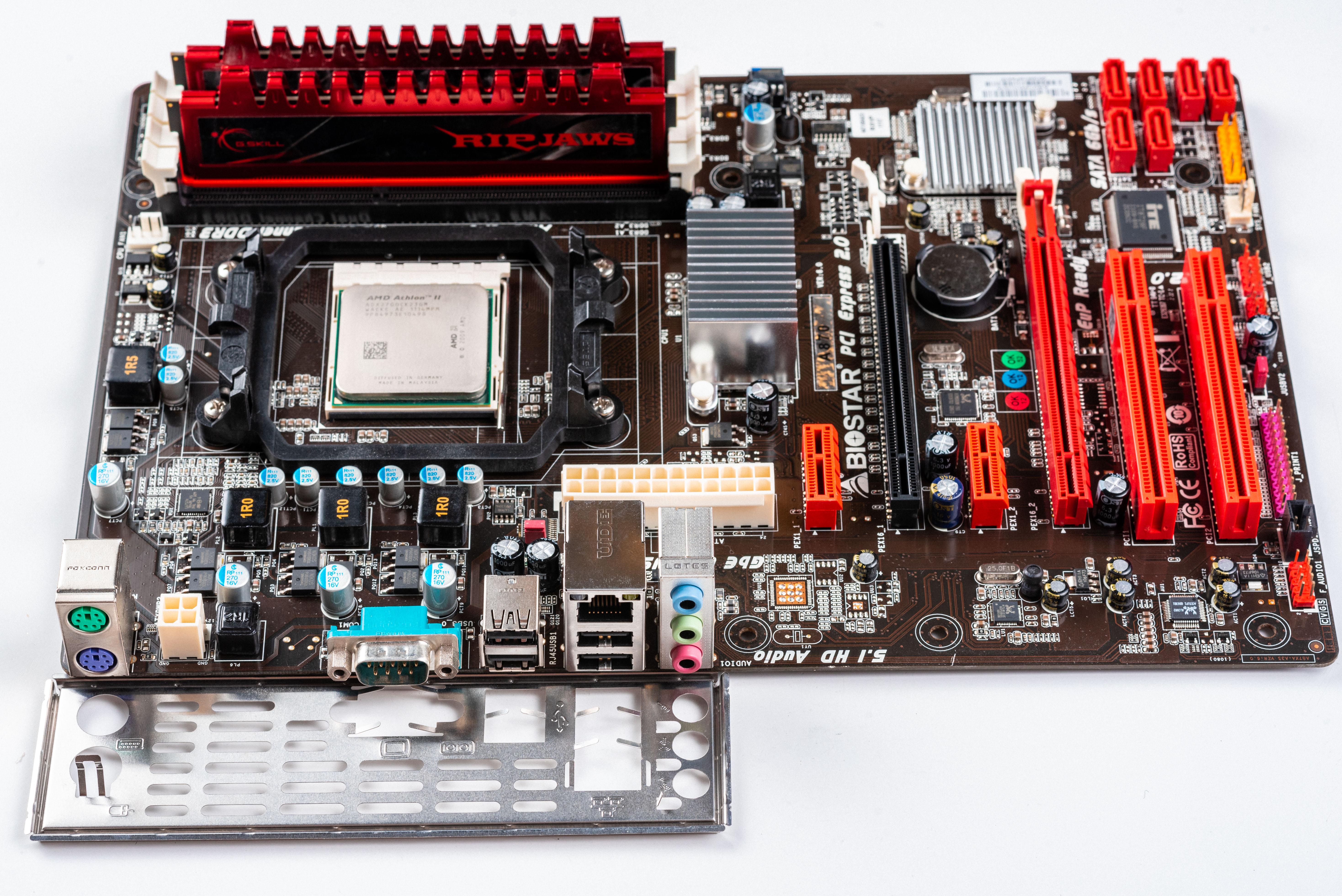

image5 Image 5 of 6 (Motherboard Continuum)

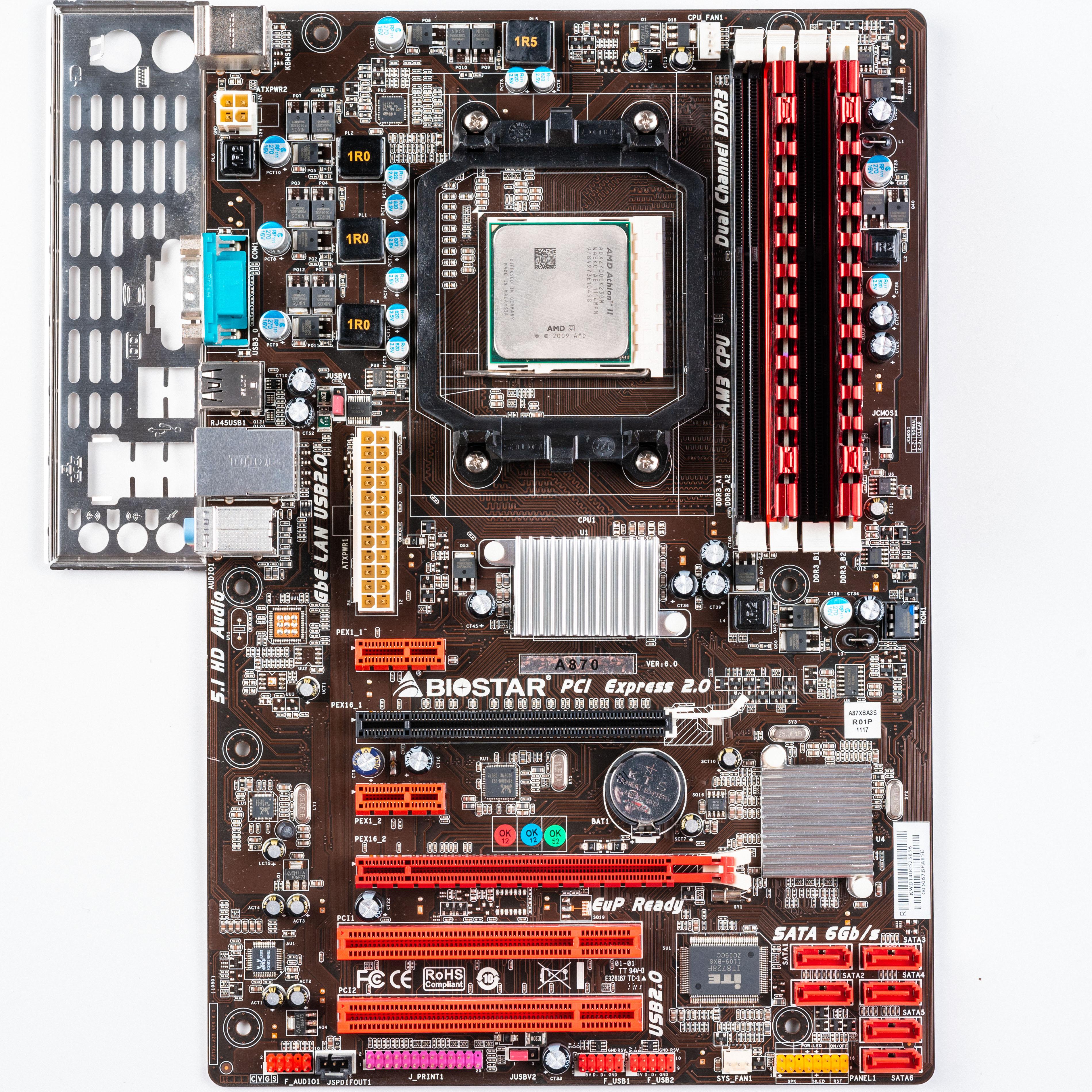

image6 Image 6 of 6 (Motherboard Continuum)
