BCM VP1543
Chipset
Socket
FSB speeds 50MHz60MHz66MHz75MHz83MHz95MHz100MHz
Form factorATX (max 305 x 244 mm)
Dimensions304 mm x 190 mm
Cache
512KB
Max RAM size
768MB
RAM types SDR UDIMM168-pin EDO UDIMM
PSU connector
Multi CPU supportno
Also known as
- GVC FR555A
- Unknown VP1541-ALB
I/O ports1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
SB_Link
2x
Serial
2x
USB 1.x
Expansion slots3x
16-bit ISA
1x
3.3V AGP
4x
32-bit PCI
Notes
Marked #20642, possibly early versions are marked #20641
Last updated 2023-05-15T20:20:01Z
Board info score is 9.3/10
Chips
-
Chipset part
3 BIOS files available
Award - 3 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
7 drivers available
Name
Version
OS support
Size
Filename
Name
Version
1.0.1.2
OS support
Windows 2000
Windows XP
Size
30.4KB
Filename
Name
Version
1.20
OS support
Windows 9x
Size
615.5KB
Filename
Name
Version
3.56
OS support
Windows 9x
Windows NT 4.0
Size
880.3KB
Filename
Name
Version
1.00
OS support
Windows 9x
Size
1.5MB
Filename
Name
Version
1.00
OS support
Windows 9x
Size
1.5MB
Filename
Name
Version
2.13
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP
Size
7.3MB
Filename
Name
Version
2.20
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP
Size
10.1MB
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2000-09
File
Logs
Family
Release date
1999-12
File
Logs
Family
Release date
2000-04
File
Logs
Family
Release date
2000-11
File
Logs
Family
Release date
1997-06
File
Logs
Family
Release date
1997-08
File
Logs

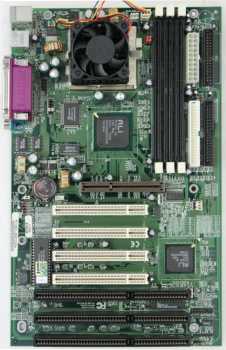

Image 1 of 3 (Microhouse)
Image 2 of 3 (Carlos S. M.)
Image 3 of 3
