Auva Computer/Autocomputer NPM16-H0/NPM20-H0/NPM25-H0
Logs
chipChipset
cpuSockets
PLCC68 PQFP100
speedFSB speeds
16MHz20MHz25MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
220mm x 220mm
chipCache
None/Integrated in the CPU
ramMax RAM size
8MB
ramRAM type
30-pin SIMM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
connI/O ports
1x
AT Keyboard
cardExpansion slots
7x
16-bit ISA
wrench Known issues
  • Leaky Ni-Cd clock battery

The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta

Last updated 2023-08-26T22:27:48Z
Board info score is 9.1/10
chip Chips
cpufam CPU family support
bios 1 BIOS file available

vendor AMI - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
30-0101-D80000-00101111-043091-HT18SX
Note
Core version
043091
BIOS version
Logs
drv No drivers available
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
image1 Image 1 of 4 (Microhouse)
image2 Image 2 of 4 (Computer Retro)

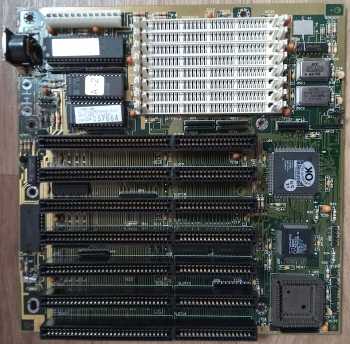

image3 Image 3 of 4 (Romain)
image4 Image 4 of 4 (Computer Retro)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
