Chipset
Socket
FSB speeds
Form factor
Dimensions
Max VRAM size
Cache
Max RAM size
RAM type
PSU connector
Also known as
I/O ports
Expansion slots
Notes
-
WARNING: This motherboard has a few variants (V-P5G31, V2-P5G31 and V3-P5G31), all these variants report themselves as "V-P5G31" in BIOS and other software. So to determine which specific variant you actually have and/or find the appropriate BIOS for it, PLEASE check the physical label on your board. Also, as this board has a slightly different layout compared to the regular retail P5KPL-VM, despite the full model name, retail P5KPL-VM BIOSes will likely NOT work on it. So please ONLY flash the appropriate BIOS for your specific board model.
-
This board was used in the ASUS V-Series P5G31 Desktop Barebone.
-
According to ASUS specifications, this motherboard was only designed for Intel CPUs with 65W or lower TDP. Intel CPUs with higher TDP may not have optimal performance on this board.
-
Despite technically being Micro-ATX, this board is 1 mm taller than the maximum 244mm length standard of the Micro-ATX form factor.
Chips
CPU family support
- Core 2 Quad (Yorkfield)
- Pentium 4 (Prescott)
- Core 2 Duo (Wolfdale)
- Core 2 Quad (Kentsfield)
- Core 2 Duo (Conroe/Allendale)
- Core 2 Extreme (Yorkfield)
- Celeron D (Prescott-256)
- Celeron Dual-Core (Wolfdale)
- Pentium Dual-Core (Wolfdale)
- Core 2 Extreme (Kentsfield)
- Pentium Dual-Core (Allendale)
- Celeron Dual-Core (Allendale)
- Celeron (Conroe-L)
7 BIOS files available
AMI - 7 entries
7 drivers available
Windows 2000
Windows 7
Windows Vista
Windows XP
Windows 2000
Windows Vista
Windows XP
Windows 2000
Windows Vista
Windows XP
1 board document available

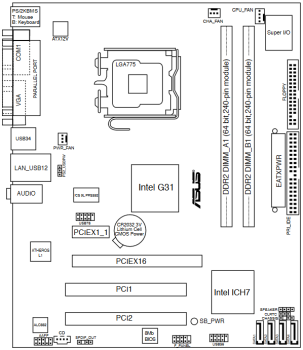

Image 1 of 4 (ASUS)
Image 2 of 4 (Mr cacodemon)
Image 3 of 4 (Mr cacodemon)
Image 4 of 4 (Mr cacodemon)
