ASUS SPAX
Chipset
Socket
FSB speeds 50MHz60MHz66MHz
Form factorATX (max 305 x 244 mm)
Dimensions244mm x 210mm
Max VRAM size8MB
Cache
512KB
Max RAM size
256MB
RAM types 72-pin FPM72-pin EDOSDR UDIMM168-pin EDO UDIMM
PSU connector
Multi CPU supportno
Also known as
- HP SPAXM-I
I/O ports1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
1x
TV-Out
2x
USB 1.x
1x
VGA
Expansion slots3x
16-bit ISA
3x
32-bit PCI
Notes
Used in HP Pavilion U.S./Canada 6330, 6333, 6336, 6343, 6350,6356, 6357, and 6360. Mexico 6329, 6331, and 6351. Asia Pacific 6305, 6305H, 6306, 6308, 6308H, 6325, 6325H, and 6329H. United Kingdom 6350 and 6355. France 6345 and 6350
Last updated 2025-04-17T09:51:42Z
Board info score is 9/10
Chips
-
Chipset part
-
Audio
2 BIOS files available
Phoenix - 2 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
4 drivers available
Name
Version
OS support
Size
Filename
Name
Version
4.5.0.2720
OS support
Windows 3.1x
Windows 9x
Windows NT 4.0
Size
19.1KB
Filename
Name
Version
2.13
OS support
MS-DOS
OS/2 Warp 3.x
OS/2 Warp 4.x
Windows 9x
Windows NT 3.1
Windows NT 3.5x
Windows NT 4.0
Size
Empty
Filename
Name
Version
1.13
OS support
Windows 2000
Windows 9x
Windows NT 3.5x
Windows NT 4.0
Size
Empty
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2000-09
File
Logs
Family
Release date
1999-12
File
Logs
Family
Release date
2000-04
File
Logs
Family
Release date
2000-11
File
Logs
Family
Release date
1997-06
File
Logs
Family
Release date
1997-08
File
Logs

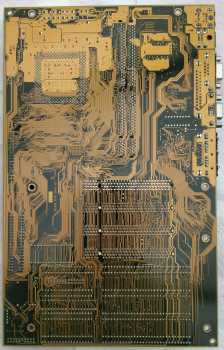

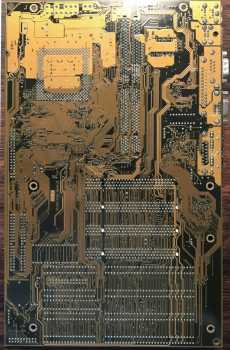

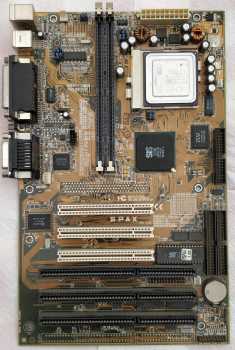

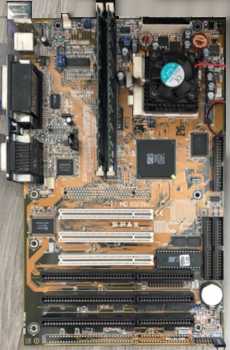

Image 1 of 5
Image 2 of 5 (deksor)
Image 3 of 5
Image 4 of 5 (deksor)
Image 5 of 5
