ASUS SP97-V
Logs
chipChipset
cpuSocket
Socket 7 (PGA321)
speedFSB speeds
50 MHz60 MHz66 MHz75 MHz83 MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
254mm x 218mm
ramMax VRAM size
4 MB
chipCache
256KB512KB
ramMax RAM size
256 MB
ramRAM types
72-pin FPM72-pin EDO
pwrPSU connector
AT (6-pin P8 + 6-pin P9) ATX 1.x (20-pin ATX)
connI/O ports
1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
PS/2 mouse
1x
Parallel
2x
Serial
2x
USB 1.x
1x
VGA
cardExpansion slots
3x
16-bit ISA
4x
32-bit PCI
wrench Known issues
  • Inadequate Power Delivery

This motherboard may have insufficient power delivery, which can lead to unstable or unsafe operation. In extreme cases, this may result in hardware damage, spontaneous combustion, or other electrical failures. Users should exercise caution and consider upgrading the motherboard power supply or other components to ensure safe and stable operation. The RetroWeb community may also provide guidance and assistance in mitigating this issue.

notes Notes
  • Warning: pinout is WRONG for the USB_IR_MOUSE connector on page 30 of manual 1.02/1.04. 5-pin USB connectors will short the pin5 to GND, this will burn out L4
  • K6-2/3/2+/3+ support with patched BIOS, also the patched BIOS fixes the 32 GB limit.
Last updated 2025-01-16T17:17:08Z
Board info score is 9.6/10
bios 5 BIOS files available

vendor Award - 5 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
03/18/99-SiS-5598-<SP97_V>C-00
Note
Patched BIOS
Core version
4.51PG
BIOS version
Logs
POST string
06/09/98-SiS-5598-<SP97_V>C-00
Note
Latest BIOS
Core version
4.51PG
BIOS version
Logs
POST string
01/22/98-SiS-5598-<SP97_V>C-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
10/03/97-SiS-5598-<SP97_V>C-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
09/04/97-SiS-5598-<<SP97>>C-00
Note
Core version
4.51PG
BIOS version
Logs
drv 3 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
1.13
Arch
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0
Size
Empty
Filename
Name
Version
2.04A
Arch
OS support
Windows 2000 Windows 9x Windows XP/2k3
Size
Empty
Filename
Name
Version
2.13
Arch
OS support
MS-DOS OS/2 Warp 3.x OS/2 Warp 4.x Windows 9x Windows NT 3.1 Windows NT 3.5x Windows NT 4.0
Size
Empty
Filename
doc 5 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
1997-06
File
Logs
Family
Release date
1998-01
File
Logs

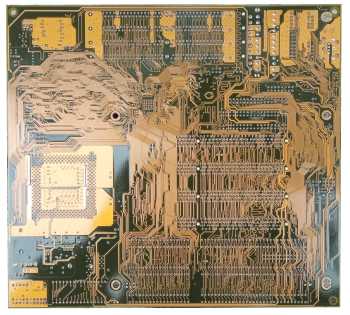

image1 Image 1 of 6 (Microhouse)
image2 Image 2 of 6 (dataino.it)
image3 Image 3 of 6
image4 Image 4 of 6
image5 Image 5 of 6
image6 Image 6 of 6 (dataino.it)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
