ASUS P5LD2

Chipset

Intel 945P (Lakeport (RAID))

Socket

Socket T (LGA775)

FSB speeds

533MHz800MHz1066MHz1333MHz

Form factor

ATX (max 305 x 244 mm)

Dimensions

305mm x 230mm

Cache

None/Integrated in the CPU

Max RAM size

4GB(DDR2-667)

RAM type

DDR2 UDIMM

PSU connector

ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)

I/O ports

3.5mm Audio Combo

Floppy interface

IDE interface

PS/2 keyboard

PS/2 mouse

Parallel

RJ-45 LAN

S/PDIF

SATA I

Serial

Toslink

USB 2.0

Expansion slots

32-bit PCI

PCIe x1

PCIe x16

Notes

1333MHz FSB support via OC of the chipset.

Support Wolfdale CPUs with unofficial BIOS. Core 2 Quad (Kentsfield) runs with patched BIOS but only 3 cores are detected. Yorkfield CPUs are unstable.

Core 2 CPUs support in rev. 2.01.

Last updated 2024-09-03T19:22:51Z

Board info score is 9.8/10

Chips

Chipset part
Intel 82945P (MCH) Intel 82801GR (ICH7R)
Audio
Realtek ALC882D (High Definition Audio)
IDE ctrl.
ITE IT8211F
Network
Marvell 88E8053 (PCIe Gigabit Ethernet)
Super I/O
Winbond W83627EHF

CPU family support

15 BIOS files available

AMI - 15 entries

POST string

Note

Core Ver.

BIOS Ver.

Logs

POST string

63-0305-000000-00101111-120505-945P-A0396000

Note

MAXDATA OEM

Core version

080011

BIOS version

MD 0305 (RAID)

Logs

POST string

63-3013-000010-00101111-060219-945P-A0227000

Note

unofficial patch for 45nm and partial quad-core CPUs support

Core version

080011

BIOS version

3013

Logs

POST string

63-2002-000010-00101111-082809-945P-A0227000

Note

beta

Core version

080011

BIOS version

2002

Logs

POST string

63-2001-000010-00101111-042809-945P-A0227000

Note

beta

Core version

080011

BIOS version

2001

Logs

POST string

63-1903-000010-00101111-072007-945P-A0227000

Note

Core version

080011

BIOS version

1903

Logs

POST string

63-1804-000010-00101111-031307-945P-A0227000

Note

Core version

080011

BIOS version

1804

Logs

POST string

63-1702-000010-00101111-010907-945P-A0227000

Note

Core version

080011

BIOS version

1702

Logs

POST string

63-1503-000010-00101111-103006-945P-A0227000

Note

Core version

080011

BIOS version

1503

Logs

POST string

63-1401-000010-00101111-082406-945P-A0227000

Note

beta

Core version

080011

BIOS version

1401

Logs

POST string

63-1207-000010-00101111-071206-945P-A0227000

Note

Core version

080011

BIOS version

1207

Logs

POST string

63-1103-000010-00101111-032006-945P-A0227000

Note

Core version

080011

BIOS version

1103

Logs

POST string

63-1003-000010-00101111-010906-945P-A0227000

Note

Core version

080011

BIOS version

1003

Logs

POST string

63-0901-000010-00101111-121505-945P-A0227000

Note

Core version

080011

BIOS version

0901

Logs

POST string

63-0809-000010-00101111-110105-945P-A0227000

Note

Core version

080011

BIOS version

0809

Logs

POST string

63-0603-000010-00101111-062105-945P-A0227000

Note

Core version

080011

BIOS version

0603

Logs

3 drivers available

Name

Version

OS support

Size

Filename

Name

Version

9.2.0.1030

OS support

Windows 2000

Windows XP

Size

Empty

Filename

infinst-autol.zip

Name

Version

9.1.2.1007

OS support

Windows 2000

Windows 7

Windows Vista

Windows XP

Size

2.4MB

Filename

infupdate.zip

Name

Version

11.45.4.3

OS support

Windows 7

Windows 8.x

Windows Vista

Windows XP

Size

1.8MB

Filename

marvell-yukon-setup-v11-45-4-3.zip

2 board documents available

Release date

File

Logs

Release date

File

CPU support

Logs

Release date

File

User Manual

Logs

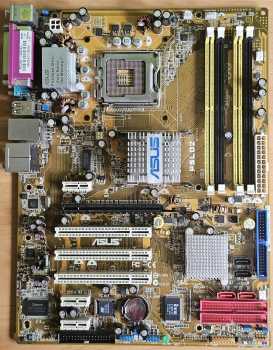

Image 1 of 5

Image 2 of 5 (Carlos S. M.)

Image 3 of 5

Image 4 of 5

Image 5 of 5
