ASUS P4G800-V
Logs
chipChipset
cpuSocket
Socket 478 (mPGA478)
speedFSB speeds
400MHz533MHz800MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 244mm
ramMax VRAM size
128MB
chipCache
None/Integrated in the CPU
ramMax RAM size
4GB
ramRAM type
DDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
connI/O ports
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
SATA I
1x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
1x
1.5V AGP
6x
32-bit PCI
wrench Known issues
  • Faulty or Leaking Electrolytic Capacitors

Some motherboards may contain faulty or leaking electrolytic capacitors, which can negatively impact system performance or stability. These capacitors may exhibit issues such as bulging, leaking, or even exploding, potentially damaging other components on the motherboard. Users should inspect their capacitors regularly and replace any that are faulty or leaking to avoid damage or system instability.

notes Notes

Used in: Compaq Presario 8615se, 8620se, 8630se, 8640se, 8650se, 8680se, 8681se, 8682se, 8683se, 8692se, 8693se, 8720se, 8740se, 8760se, 8770se, 8780se, 8800se, 8810se, 8880se, 8885se

Last updated 2023-08-23T23:52:09Z
Board info score is 9.4/10
bios 15 BIOS files available

vendor AMI - 15 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-1101-000001-00101111-022706-I865G-P4G80000
Note
beta
Core version
080009
BIOS version
Logs
POST string
63-1015-000001-00101111-080805-I865G-P4G80000
Note
beta
Core version
080009
BIOS version
Logs
POST string
63-1014-000001-00101111-062105-I865G-P4G80000
Note
beta
Core version
080009
BIOS version
Logs
POST string
63-1011-000001-00101111-060305-I865G-P4G80000
Note
beta
Core version
080009
BIOS version
Logs
POST string
63-1014-000001-00101111-062105-I865G-P4G80000
Note
Core version
080009
BIOS version
Logs
POST string
63-0904-000001-00101111-081104-I865G-P4G80000
Note
beta
Core version
080009
BIOS version
Logs
POST string
63-0902-000001-00101111-032204-I865G-P4G80000
Note
beta
Core version
080009
BIOS version
Logs
POST string
63-0904-000001-00101111-081104-I865G-P4G80000
Note
Core version
080009
BIOS version
Logs
POST string
63-0704-000001-00101111-021304-I865G-P4G80000
Note
Core version
080009
BIOS version
Logs
POST string
63-0701-000001-00101111-111803-I865G-P4G80000
Note
beta
Core version
080009
BIOS version
Logs
POST string
63-0702-000001-00101111-021204-I865G-P4G80000
Note
Core version
080009
BIOS version
Logs
POST string
63-0601-000001-00101111-111703-I865G-P4G80000
Note
Core version
080009
BIOS version
Logs
POST string
63-0403-000001-00101111-101603-I865G-P4G80000
Note
beta
Core version
080009
BIOS version
Logs
POST string
63-0402-000001-00101111-072303-I865G-P4G80000
Note
Core version
080009
BIOS version
Logs
POST string
63-0303-000001-00101111-060503-I865G-P4G80000
Note
Core version
080009
BIOS version
Logs
drv 12 drivers available
Name
Version
OS support
Size
Filename
Name
Version
A4.06
OS support
Windows 2000 Windows 9x Windows XP
Size
17.9MB
Filename
Name
Version
9.1.2.1007
OS support
Windows 2000 Windows 7 Windows Vista Windows XP
Size
2.4MB
Filename
Name
Version
6.3.0.1007
OS support
Windows 2000 Windows 9x Windows XP
Size
Empty
Filename
Name
Version
4.14.10.3732
OS support
Windows 9x
Size
Empty
Filename
Name
Version
4.14.10.3732
OS support
Windows 9x
Size
Empty
Filename
Name
Version
4.03.1381.3732
OS support
Windows NT 4.0
Size
Empty
Filename
Name
Version
4.03.1381.3732
OS support
Windows NT 4.0
Size
Empty
Filename
Name
Version
3.40.1001
OS support
Windows 2000 Windows 9x Windows XP
Size
2.2MB
Filename
Name
Version
14.7.0.3889
OS support
Windows 2000 Windows XP
Size
Empty
Filename
Name
Version
14.7.0.3889
OS support
Windows 2000 Windows XP
Size
Empty
Filename
Name
Version
14.17.0.4396
OS support
Windows 2000 Windows XP
Size
Empty
Filename
Name
Version
14.17.0.4396
OS support
Windows 2000 Windows XP
Size
Empty
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2002-10-25
File
Logs
Chip
Release date
2003-04
File
Logs
Chip
Release date
2003-05
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2003-05
File
Logs
Chip
Release date
2004-02
File
Logs
Chip
Release date
2003-05
File
Logs
Chip
Release date
2004-02
File
Logs
Chip
Release date
2003-09
File
Logs
Chip
Release date
2004-02
File
Logs
Chip
Release date
2003-09
File
Logs
Chip
Release date
2004-03
File
Logs
Chip
Release date
2003-09
File
Logs
Chip
Release date
2003-10
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2003-05
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-02
File
Logs
Family
Release date
2001-02
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-11
File
Logs
Family
Release date
2002-11
File
Logs
Family
Release date
2005-02
File
Logs
Family
Release date
2005-05
File
Logs
Family
Release date
2004-02
File
Logs
Family
Release date
2004-02
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-08
File
Logs
Family
Release date
2001-10
File
Logs
Family
Release date
2002-05
File
Logs
Family
Release date
2002-05
File
Logs
Family
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2001-10
File
Logs
Socket
Release date
2002-05
File
Logs
Socket
Release date
2002-10
File
Logs
Socket
Release date
2001-08
File
Logs

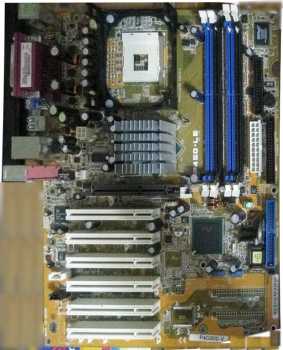

image1 Image 1 of 3 (evasive)

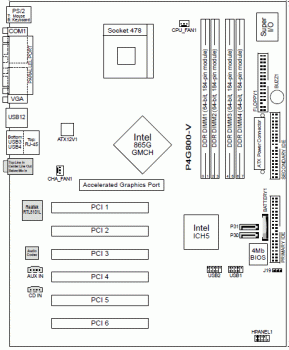

image2 Image 2 of 3
image3 Image 3 of 3
