ASUS P3B-F
Chipset
Socket
FSB speeds 66MHz100MHz133MHz
Form factorATX (max 305 x 244 mm)
Dimensions305 mm x 200 mm
Cache
None/Integrated in the CPU
Max RAM size
1GB
RAM types SDR UDIMMSDR UDIMM ECCSDR RDIMM ECC
PSU connector
I/O ports1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
2x
USB 1.x
Expansion slots2x
16-bit ISA
1x
3.3V AGP
5x
32-bit PCI
Notes:
Variant with 1 ISA slot exists
Last updated 2024-04-20T18:29:32Z
Board info score is 9.6/10
Chipset partsSensing / Monitoring chipsSuper I/O chips
CPU family support
10 files available
Vendor: Award [10 entries]
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
10/15/2001-i440BX-<P3B-F>
Note
beta Coppermine C0 support
Core version
Asus v6.0
BIOS version
Logs
POST string
05/02/2000-i440BX-<P3B-F>
Note
Beta BIOS
Core version
Asus v6.0
BIOS version
Logs
POST string
05/19/2000-i440BX-<P3B-F>
Note
>8.5x multiplier
Core version
Asus v6.0
BIOS version
Logs
POST string
03/15/2000-i440BX-<P3B-F>
Note
fix temp shown
Core version
Asus v6.0
BIOS version
Logs
1 known good driver available
Name
Version
OS support
Size
Filename
Name
Version
3.20.1008
OS support
Windows 2000
Windows 9x
Windows XP
Size
Empty
Filename
Name
Version
OS support
Size
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS
NetWare Server 3
NetWare Server 4
OS/2 Warp 3.x
Windows 3.1x
Windows 9x
Windows NT 3.5x
Size
1.6MB
Filename
4 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
File
Logs
1 other file available
Title
File
Logs

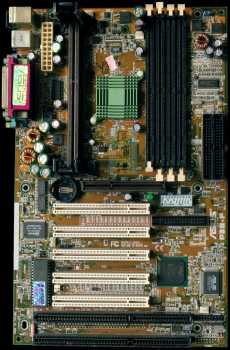

Image 1 of 6 (evasive)
Image 2 of 6 (DOS Days)
Image 3 of 6 (PCang)
Image 4 of 6 (VooDooMan)
Image 5 of 6 (PCang)
Image 6 of 6 (VooDooMan)
