ASUS NRL-LS
chipChipset
cpuSocket
Socket 478 (mPGA478)
speedFSB speed
400MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
307mm x 244mm
chipCache
None/Integrated in the CPU
ramMax RAM size
4GB
ramRAM type
DDR UDIMM ECC
pwrPSU connector
12V P4 Connector (4-pin P4) ATX 2.x (24-pin ATX)
connI/O ports
1x
External SCSI
1x
Floppy interface
3x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
Serial
4x
USB 1.x
1x
VGA
cardExpansion slots
5x
64-bit PCI

Notes:

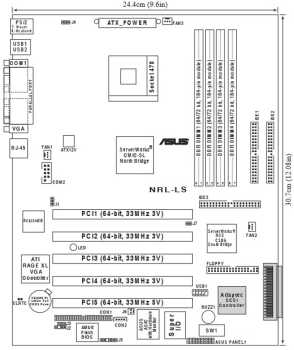

Although ASUS specifies this board as ATX, the board is very slightly taller than maximum ATX spec size (305mm vs 307mm).

Top 4 64-bit PCI slots are 3V, while the fifth slot is 5V.

Also includes optional Adaptec AIC-7892X Ultra SCSI controller.

Third IDE Channel has PIO mode 3/4 support

Last updated 2024-08-02T21:40:00Z
Board info score is 9.6/10
3 files available

Vendor: Award [3 entries]

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
09/29/2003-CMIC-SL/CSB6/NS417-NRL-LS
Note
Core version
v6.0
BIOS version
Logs
POST string
10/25/2002-CMIC-SL/CSB6/NS417-NRL-LS
Note
Core version
v6.0
BIOS version
Logs
POST string
09/30/2002-CMIC-SL/CSB6/NS417-NRL-LS
Note
Core version
v6.0
BIOS version
Logs
drv 12 drivers available
Name
Version
OS support
Size
Filename
Name
Version
5.10.2600.6009
OS support
Windows XP
Size
7.8MB
Filename
Name
Version
5.00.2195.4005
OS support
Windows 2000
Size
5.8MB
Filename
Name
Version
4.00.1381.1006
OS support
Windows NT 4.0
Size
5.6MB
Filename
Name
Version
4.13.1.2655
OS support
Windows 9x
Size
10.4MB
Filename
Name
Version
11.1
OS support
MS-DOS Windows 2000 Windows 9x Windows XP
Size
36.4MB
Filename
Name
Version
2003
OS support
Windows 9x
Size
8.9MB
Filename
Name
Version
2003
OS support
Windows 9x
Size
8.7MB
Filename
Name
Version
2003
OS support
Windows 2000
Size
12.3MB
Filename
Name
Version
2003
OS support
Windows NT 4.0
Size
7.6MB
Filename
Name
Version
2003
OS support
Windows 9x
Size
1.5MB
Filename
Name
Version
2003
OS support
Windows 9x
Size
1.4MB
Filename
Name
Version
2003
OS support
MS-DOS OS/2 2.x
Size
554.8KB
Filename
