ASUS M4N68T-M V2
Chipset
Socket
FSB speed Empty
Form factorMicroATX (max 244 x 244 mm)
Dimensions244mm x 208mm
Max VRAM size256MB
Cache
None/Integrated in the CPU
Max RAM size
8GB(DDR3-1800)
RAM types DDR3 UDIMMDDR3 UDIMM ECC
PSU connector
I/O ports1x
3.5mm Audio Combo
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
4x
SATA II
1x
Serial
10x
USB 2.0
1x
VGA
Expansion slots2x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
Last updated 2023-11-18T11:50:30Z
Board info score is 9.4/10
Chips
-
Chipset part
-
Super I/O
CPU family support
6 BIOS files available
AMI - 6 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
64-1001-000001-00101111-122111-MCP68SE-A1706000
Note
Core version
080014
BIOS version
Logs
POST string
64-0901-000001-00101111-070511-MCP68SE-A1706000
Note
Core version
080014
BIOS version
Logs
POST string
64-0702-000001-00101111-012611-MCP68SE-A1706000
Note
Core version
080014
BIOS version
Logs
POST string
64-0501-000001-00101111-080310-MCP68SE-A1706000
Note
Core version
080014
BIOS version
Logs
POST string
64-0402-000001-00101111-073010-MCP68SE-A1706000
Note
Core version
080014
BIOS version
Logs
POST string
64-0304-000001-00101111-072010-MCP68SE-A1706000
Note
Core version
080014
BIOS version
Logs
1 driver available
Name
Version
OS support
Size
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2007-09-05
File
Logs
Chip
Release date
2008-09-02
File
Logs

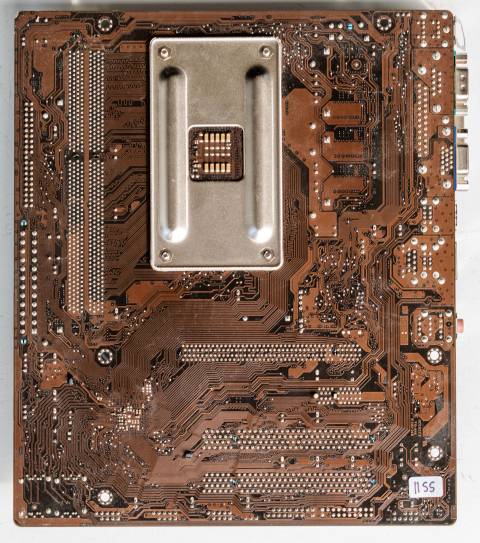

Image 1 of 6
Image 2 of 6 (Motherboard Continuum)

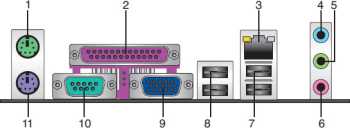

Image 3 of 6 (ASUS)

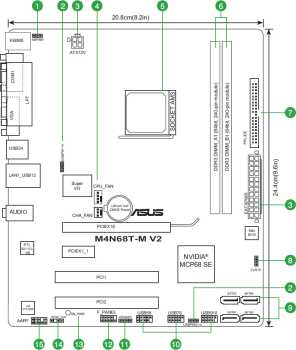

Image 4 of 6 (Motherboard Continuum)

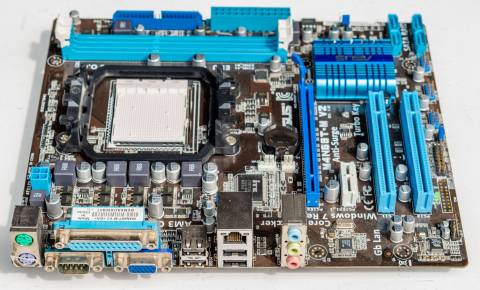

Image 5 of 6 (Motherboard Continuum)

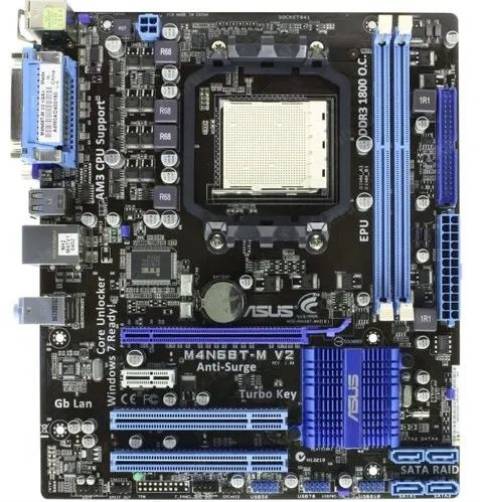

Image 6 of 6
