ASUS M2N68-LA Rev. 2.xx, full-featured (HP OEM)
Logs
chipChipset
cpuSocket
Socket AM2 (mPGA940)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 244mm
ramMax VRAM size
128MB
chipCache
None/Integrated in the CPU
ramMax RAM size
4GB(DDR2-533)
ramRAM type
DDR2 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
  • HP Narra2-GL8E
  • HP HP 5188-7684

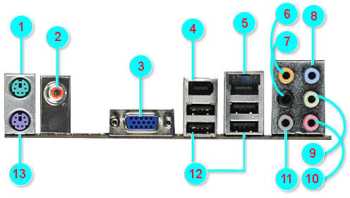

connI/O ports
1x
3.5mm Audio Combo
2x
FireWire 400
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
1x
S/PDIF
4x
SATA II
10x
USB 2.0
1x
VGA
cardExpansion slots
2x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
wrench No board specific known issues
  • Bumpgate

These cards are likely to suffer a premature failure due to the defective 90nm process node from TSMC used back in the day, where the die underfill used was inappropriate for the chip design.

On Nvidia GPUs it mainly affects all 90/80/65 and some 55 nm GPUs (the A revisons of G9x and GT200 chips).

You can see a very detailed explanation of this issue by RIP Felix on YouTube

notes Notes

  • Used in HP Pavilion a6110n Desktop.

  • CPU limitation up to 89W.

  • Shares BIOS with Narra-GL8E

Last updated 2026-02-19T17:36:06Z
Board info score is 8.4/10
bios 1 BIOS file available

vendor Award - 4 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
10/29/2007-MCP61P-NARRA-00
Note
sp37190
Core version
6.00PG
BIOS version
Logs
POST string
04/18/2007-MCP61P-NARRA-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
05/15/2007-MCP61P-NARRA-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
06/23/2007-MCP61P-NARRA-00
Note
Core version
6.00PG
BIOS version
Logs
drv 3 drivers available
Name
Version
OS support
Size
Filename
Name
Version
6.66E
OS support
Windows 2000 Windows XP/2k3
Size
37.8MB
Filename
Name
Version
15.23
OS support
Windows XP/2k3
Size
50.9MB
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Size
30.7MB
Filename
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
2006-04-25
File
Logs
Chip
Release date
2008-04-07
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-12
File
Logs
Chip
Release date
2005-01
File
Logs
Chip
Release date
2004-08
File
Logs
Chip
Release date
2004-08
File
Logs
Chip
Release date
2004-10
File
Logs
Chip
Release date
2004-11
File
Logs
Chip
Release date
2006-05
File
Logs
Chip
Release date
2006-10
File
Logs
Chip
Release date
2001-02
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs

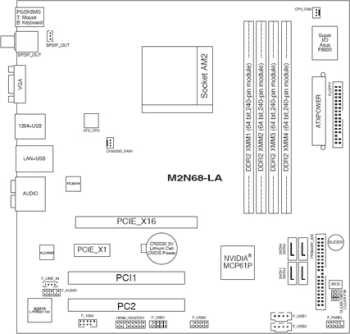

image1 Image 1 of 5 (ASUS)
image2 Image 2 of 5 (Motherboard Continuum)
image3 Image 3 of 5 (Motherboard Continuum)
image4 Image 4 of 5 (Motherboard Continuum)
image5 Image 5 of 5 (HP)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
