ASUS M2N68-LA Rev: 1.xx (HP OEM)
Logs
chipChipset
cpuSocket
Socket AM2 (mPGA940)
speedFSB speed
Empty
moboForm factor
MicroATX (max 244 x 244 mm)
dimDimensions
244mm x 244mm
ramMax VRAM size
128MB
chipCache
None/Integrated in the CPU
ramMax RAM size
4GB(DDR2-533)
ramRAM type
DDR2 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
  • HP Narra-GL8E
  • HP 5188-7684

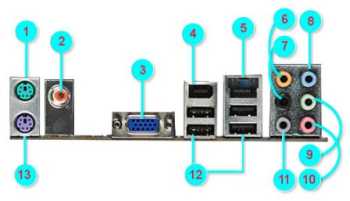

connI/O ports
1x
3.5mm Audio Combo
2x
FireWire 400
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
1x
S/PDIF
4x
SATA II
10x
USB 2.0
1x
VGA
cardExpansion slots
2x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
notes Notes

  • Used in HP Pavilion A6000N Desktop.

  • CPU limitation up to 89W.

  • Oldest revision.

Last updated 2023-10-04T00:38:02Z
Board info score is 8.2/10
bios 1 BIOS file available

vendor Award - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
10/29/2007-MCP61P-NARRA-00
Note
sp37190
Core version
6.00PG
BIOS version
Logs
drv 2 drivers available
Name
Version
OS support
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP
Size
30.7MB
Filename
Name
Version
15.23
OS support
Windows XP
Size
50.9MB
Filename

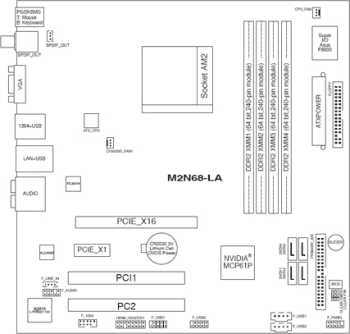

image1 Image 1 of 3
image2 Image 2 of 3
image3 Image 3 of 3
