ASUS M2N61-AR (HP OEM)
Logs
chipChipset
cpuSocket
Socket AM2 (mPGA940)
speedFSB speed
Empty
moboForm factor
ITX (215 mm x 191 mm)
dimDimensions
190mm x 172mm
ramMax VRAM size
256MB
chipCache
None/Integrated in the CPU
ramMax RAM size
4GB(DDR2-800)
ramRAM type
DDR2 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX)
tag Also known as
  • HP Acacia-GL6E
  • HP Pavilion Slimline s3300f

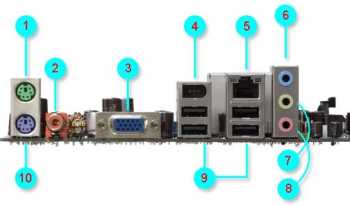

connI/O ports
1x
3.5mm Audio Combo
1x
FireWire 400
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
1x
S/PDIF
2x
SATA II
10x
USB 2.0
1x
VGA
cardExpansion slots
1x
32-bit PCI
1x
PCIe x16
wrench No board specific known issues
  • Bumpgate

These cards are likely to suffer a premature failure due to the defective 90nm process node from TSMC used back in the day, where the die underfill used was inappropriate for the chip design.

On Nvidia GPUs it mainly affects all 90/80/65 and some 55 nm GPUs (the A revisons of G9x and GT200 chips).

You can see a very detailed explanation of this issue by RIP Felix on YouTube

Last updated 2025-04-15T18:00:08Z
Board info score is 9.4/10
bios 2 BIOS files available

vendor Award - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
06/18/2008-MCP61-M2N61-AR-00
Note
sp40834
Core version
6.00PG
BIOS version
Logs
POST string
04/01/2008-MCP61-M2N61-AR-00
Note
sp37367
Core version
6.00PG
BIOS version
Logs
drv 2 drivers available
Name
Version
OS support
Size
Filename
Name
Version
6.66E
OS support
Windows 2000 Windows XP/2k3
Size
37.8MB
Filename
Name
Version
15.23
OS support
Windows XP/2k3
Size
50.9MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-12
File
Logs
Chip
Release date
2005-01
File
Logs
Chip
Release date
2004-08
File
Logs
Chip
Release date
2004-08
File
Logs
Chip
Release date
2004-10
File
Logs
Chip
Release date
2004-11
File
Logs
Chip
Release date
2006-05
File
Logs
Chip
Release date
2006-10
File
Logs
Chip
Release date
2001-02
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs

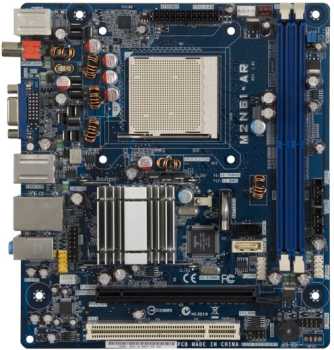

image1 Image 1 of 6 (ASUS)

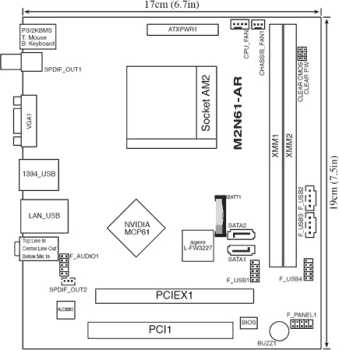

image2 Image 2 of 6 (Motherboard Continuum)
image3 Image 3 of 6 (ASUS)
image4 Image 4 of 6 (Motherboard Continuum)
image5 Image 5 of 6 (Motherboard Continuum)
image6 Image 6 of 6 (ASUS)
