ASUS M2A74-AM SE
Logs
chipChipset
cpuSockets
Socket AM2 (mPGA940) Socket AM2+ (mPGA940) Socket AM3 (mPGA941)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 193mm
ramMax VRAM size
256 MB
chipCache
None/Integrated in the CPU
ramMax RAM size
8 GB(DDR2-1066)
ramRAM types
DDR2 UDIMMDDR2 UDIMM ECC
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)

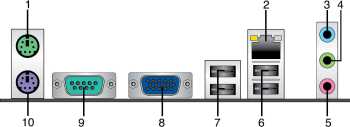

connI/O ports
1x
3.5mm Audio Combo
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
SATA II
1x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
1x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
Last updated 2026-02-21T11:42:04Z
Board info score is 9.2/10
bios 13 BIOS files available

vendor AMI - 13 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
64-1403-000001-00101111-092010-RS740_SB7-A1266001
Note
Core version
080014
BIOS version
Logs
POST string
64-1303-000001-00101111-061210-RS740_SB7-A1266001
Note
Core version
080014
BIOS version
Logs
POST string
64-1202-000001-00101111-121509-RS740_SB7-A1266001
Note
Core version
080014
BIOS version
Logs
POST string
64-1101-000001-00101111-102909-RS740_SB7-A1266001
Note
Core version
080014
BIOS version
Logs
POST string
64-1001-000001-00101111-091709-RS740_SB7-A1266001
Note
Core version
080014
BIOS version
Logs
POST string
64-0901-000001-00101111-082509-RS740_SB7-A1266001
Note
Core version
080014
BIOS version
Logs
POST string
64-0801-000001-00101111-080309-RS740_SB7-A1266001
Note
Core version
080014
BIOS version
Logs
POST string
64-0703-000001-00101111-071709-RS740_SB7-A1266001
Note
Core version
080014
BIOS version
Logs
POST string
64-0602-000001-00101111-052009-RS740_SB7-A1266001
Note
Core version
080014
BIOS version
Logs
POST string
64-0507-000001-00101111-041009-RS740_SB7-A1266001
Note
Core version
080014
BIOS version
Logs
POST string
64-0504-000001-00101111-032909-RS740_SB7-A1266001
Note
Core version
080014
BIOS version
Logs
POST string
64-0402-000001-00101111-031209-RS740_SB7-A1266001
Note
Core version
080014
BIOS version
Logs
POST string
64-0310-000001-00101111-022409-RS740_SB7-A1266001
Note
Core version
080014
BIOS version
Logs
drv 5 drivers available
Name
Version
Arch
OS support
Size
Filename
Name
Version
R2.74
Arch
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Size
30.7MB
Filename
Name
Version
5.836
Arch
x86 , x64
OS support
Windows 2000 Windows XP/2k3
Size
9.3MB
Filename
Name
Version
7.154
Arch
x86 , x64
OS support
Windows 7
Size
4.8MB
Filename
Name
Version
8.100
Arch
x86 , x64
OS support
Windows 8.x
Size
4.8MB
Filename
Name
Version
106.35
Arch
x86 , x64
OS support
Windows Vista
Size
9.5MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2007-06-15
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
image1 Image 1 of 3 (ASUS)
image2 Image 2 of 3 (ASUS)
image3 Image 3 of 3 (ASUS)
