ASUS M2A-MVP
Chipset
Sockets
FSB speed Empty
Form factorATX (max 305 x 244 mm)
Dimensions305mm x 218mm
Cache
None/Integrated in the CPU
Max RAM size
8GB
RAM types DDR2 UDIMMDDR2 UDIMM ECC
PSU connector

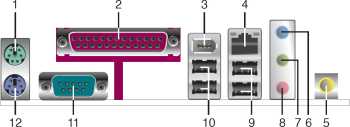

I/O ports1x
3.5mm Audio Combo
2x
FireWire 400
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
4x
SATA II
1x
Serial
10x
USB 2.0
Expansion slots2x
32-bit PCI
2x
PCIe x1
2x
PCIe x16 @ x8
Notes
Chipset is rebranded as AMD 480X CrossFire in some revisions.
Last updated 2025-02-18T05:51:00Z
Board info score is 9.4/10
Chips
-
Chipset part
-
FireWire ctrl.
-
Super I/O
5 BIOS files available
AMI - 5 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
64-0511-000001-00101111-020209-RD480-A0652000
Note
Core version
080012
BIOS version
Logs
POST string
64-0509-000001-00101111-110207-RD480-A0652000
Note
Beta Version
Core version
080012
BIOS version
Logs
POST string
64-0503-000001-00101111-071207-RD480-A0652000
Note
Beta Version
Core version
080012
BIOS version
Logs
POST string
64-0401-000001-00101111-011107-RD480-A0652000
Note
Core version
080012
BIOS version
Logs
POST string
64-0301-000001-00101111-112906-RD480-A0652000
Note
Core version
080012
BIOS version
Logs
2 drivers available
Name
Version
OS support
Size
Filename
Name
Version
R2.74
OS support
Windows 2000
Windows 7
Windows Vista
Windows XP
Size
30.7MB
Filename
Name
Version
11.45.4.3
OS support
Windows 7
Windows 8.x
Windows Vista
Windows XP
Size
1.8MB
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006
File
Logs
Chip
Release date
2008-11-28
File
Logs
Image 1 of 4 (ASUS)
Image 2 of 4 (Wladimirek94)
Image 3 of 4 (ASUS)
Image 4 of 4 (ASUS)
