ASUS ISA-386U3Q
Chipset
Sockets
FSB speeds 33MHz40MHz
Form factorBaby AT (max 220 x 330 mm)
Dimensions234mm x 221mm
Cache
Max RAM size
RAM type
PSU connector
I/O ports1x
AT Keyboard
Expansion slots6x
16-bit ISA
1x
8-bit ISA
Known issues:
- Leaky Ni-Cd clock battery
The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta
Last updated 2023-08-19T23:14:37Z
Board info score is 9.1/10
CPU family support
1 file available
Vendor: AMI [1 entry]
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
30-024B-001292-00101111-050591-I386U3Q-0
Note
Core version
050591
BIOS version
Logs
No drivers available
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

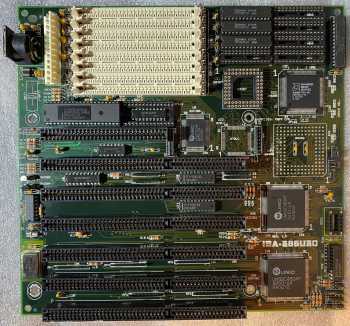

Image 1 of 5 (Microhouse)
Image 2 of 5 (pshipkov)
Image 3 of 5 (Predator99)
Image 4 of 5 (ThisOldTech)
Image 5 of 5 (ThisOldTech)
