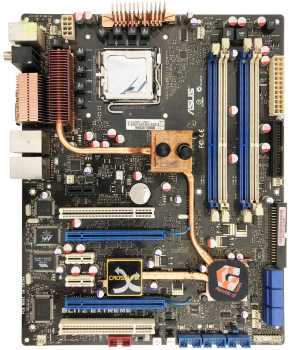

ASUS Blitz Extreme

Chipset

Intel P35 (Bearlake-P+ (RAID))

Socket

Socket T (LGA775)

FSB speeds

800MHz1066MHz1333MHz

Form factor

ATX (max 305 x 244 mm)

Dimensions

305mm x 245mm

Cache

None/Integrated in the CPU

Max RAM size

8GB

RAM type

DDR2 UDIMM

PSU connector

ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)

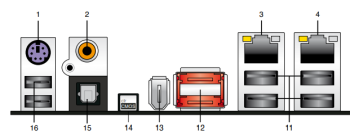

I/O ports

FireWire 400

Floppy interface

IDE interface

PS/2 keyboard

RJ-45 LAN

S/PDIF

SATA II

Toslink

12x

USB 2.0

eSATA II

Expansion slots

32-bit PCI

PCIe x1

PCIe x16

Notes

Supports SupremeFX II Audio Card

Last updated 2023-06-09T15:54:42Z

Board info score is 9.6/10

Chips

Chipset part
Intel 82P35 (MCH) Intel 82801IR (ICH9R)
FireWire ctrl.
VIA VT6308P (2 port FireWire 400 PCI ctrl.)
Miscellaneous
Renesas 89HPES24N3A (24-Lane 3-Port PCI Express Switch)
Network
Marvell 88E8001 (PCI Gigabit Ethernet) Marvell 88E8056
RAID ctrl.
JMicron JMB363 (PCIe to SATA II and PATA HC)

CPU family support

11 BIOS files available

AMI - 11 entries

POST string

Note

Core Ver.

BIOS Ver.

Logs

POST string

65-1203-000001-00101111-102709-Bearlake-A0777058

Note

Core version

080012

BIOS version

1203

Logs

POST string

65-1101-000001-00101111-061808-Bearlake-A0777056

Note

Core version

080012

BIOS version

1101

Logs

POST string

65-1007-000001-00101111-020108-Bearlake-A0777053

Note

Beta Version

Core version

080012

BIOS version

1007

Logs

POST string

65-1005-000001-00101111-122707-Bearlake-A0777051

Note

Core version

080012

BIOS version

1005

Logs

POST string

65-1002-000001-00101111-120507-Bearlake-A0777048

Note

Beta Version

Core version

080012

BIOS version

1002

Logs

POST string

65-0904-000001-00101111-103107-Bearlake-A0777046

Note

Core version

080012

BIOS version

0904

Logs

POST string

65-0804-000001-00101111-080907-Bearlake-A0777043

Note

Core version

080012

BIOS version

0804

Logs

POST string

65-0802-000001-00101111-080707-Bearlake-A0777041

Note

Beta Version

Core version

080012

BIOS version

0802

Logs

POST string

65-0801-000001-00101111-072407-Bearlake-A0777040

Note

Beta Version

Core version

080012

BIOS version

0801

Logs

POST string

65-0702-000001-00101111-070307-Bearlake-A0777039

Note

Core version

080012

BIOS version

0702

Logs

POST string

65-0601-000001-00101111-062107-Bearlake-A0777037

Note

Core version

080012

BIOS version

0601

Logs

4 drivers available

Name

Version

OS support

Size

Filename

Name

Version

R1.17.39

OS support

Windows 2000

Windows Vista

Windows XP

Size

3.8MB

Filename

jmb36x-windrv-r1-17-39whql.zip

Name

Version

9.2.0.1030

OS support

Windows 2000

Windows XP

Size

Empty

Filename

infinst-autol.zip

Name

Version

11.45.4.3

OS support

Windows 7

Windows 8.x

Windows Vista

Windows XP

Size

1.8MB

Filename

marvell-yukon-setup-v11-45-4-3.zip

Name

Version

11.45.4.3

OS support

Windows 7

Windows 8.x

Windows Vista

Windows XP

Size

1.8MB

Filename

marvell-yukon-setup-v11-45-4-3.zip

5 board documents available

Release date

File

Logs

Release date

File

Debug Code Table

Logs

Release date

File

Fusion Block Install Guide

Logs

Release date

File

Onboard LED Technical Update Insert Page

Logs

Release date

File

SATA Technical Update Insert Page

Logs

Release date

File

User Manual

Logs

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
