ASUS A8N32-SLI Deluxe
Logs
chipChipset
cpuSocket
Socket 939 (mPGA939)
speedFSB speeds
800MHz1000MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 245mm
chipCache
None/Integrated in the CPU
ramMax RAM size
4GB
ramRAM type
DDR UDIMM
pwrPSU connector
Molex (4-pin) ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
  • ASUS A8N32-SLI Deluxe/WiFi
connI/O ports
1x
3.5mm Audio Combo
2x
FireWire 400
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
RJ-45 LAN
1x
S/PDIF
5x
SATA I
1x
Serial
1x
Toslink
10x
USB 2.0
1x
eSATA
cardExpansion slots
3x
32-bit PCI
2x
PCIe x16
1x
PCIe x4
notes Notes

A8N32-SLI Deluxe (10x USB 2.0 ports)

A8N32-SLI Deluxe/WiFi (9x USB 2.0 ports)

ASUS A8N32-SLI is printed on the PCB

Deluxe/WiFi version uses Realtek RTL8187L IEEE 802.11b/g 54 Mbps Wireless LAN adapter

Last updated 2025-04-11T13:33:20Z
Board info score is 9.8/10
bios 9 BIOS files available

vendor AMI - 9 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
64-1409-009999-00101111-112008-C51G-A0371001
Note
Beta Version
Core version
080012
BIOS version
Logs
POST string
64-1405-009999-00101111-010807-C51G-A0371001
Note
Beta Version
Core version
080012
BIOS version
Logs
POST string
64-1303-009999-00101111-071306-C51G-A0371001
Note
Core version
080012
BIOS version
Logs
POST string
64-1205-009999-00101111-042806-C51G-A0371001
Note
Core version
080012
BIOS version
Logs
POST string
64-1103-009999-00101111-010206-C51G-A0371001
Note
Core version
080012
BIOS version
Logs
POST string
64-1009-009999-00101111-121405-C51G-A0371001
Note
Core version
080012
BIOS version
Logs
POST string
64-0903-009999-00101111-111705-C51G-A0371001
Note
Core version
080012
BIOS version
Logs
POST string
64-0703-009999-00101111-102705-C51G-A0371001
Note
Core version
080012
BIOS version
Logs
POST string
64-0502-009999-00101111-100605-C51G-A0371001
Note
Core version
080012
BIOS version
Logs
drv 9 drivers available
Name
Version
OS support
Size
Filename
Name
Version
1.3
OS support
Windows 9x
Size
19KB
Filename
Name
Version
1.3
OS support
Windows NT 4.0
Size
16.5KB
Filename
Name
Version
1.2
OS support
Windows 2000
Size
31.9KB
Filename
Name
Version
11.45.4.3
OS support
Windows 7 Windows 8.x Windows Vista Windows XP
Size
1.8MB
Filename
Name
Version
1.0
OS support
Windows 2000 Windows NT 4.0
Size
1.4MB
Filename
Name
Version
15.23
OS support
Windows XP
Size
50.9MB
Filename
Name
Version
A4.06
OS support
Windows 2000 Windows 9x Windows XP
Size
17.9MB
Filename
Name
Version
Empty
OS support
MS-DOS
Size
26.8KB
Filename
Name
Version
Empty
OS support
Windows XP
Size
26.8KB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-04-20
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2000-02-29
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2001-12
File
Logs

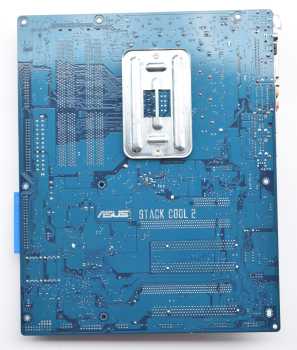

image1 Image 1 of 5
image2 Image 2 of 5 (Motherboard Continuum)
image3 Image 3 of 5 (Carlos S. M.)
image4 Image 4 of 5 (Motherboard Continuum)
image5 Image 5 of 5 (Motherboard Continuum)
