ASUS A7V133
Logs
chipChipset
cpuSocket
Socket A (PGA462)
speedFSB speeds
200MHz266MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 244mm
chipCache
None/Integrated in the CPU
ramMax RAM size
1.5GB
ramRAM type
SDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
tag Also known as
  • ASUS A7V133-C (no RAID)
connI/O ports
1x
Floppy interface
1x
Gameport
4x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
6x
USB 1.x
cardExpansion slots
5x
32-bit PCI
1x
AMR
1x
Universal AGP Pro
notes Notes

Palomino/Morgan core supported from PCB 1.05 and higher only!

Last updated 2025-05-11T10:53:01Z
Board info score is 9.6/10
bios 12 BIOS files available

vendor Award - 12 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
02/11/2003-VIA-KT133A-<A7V133>
Note
For A7V133, Supports 48-Bit LBA
Core version
Asus v6.0
BIOS version
Logs
POST string
02/11/2003-VIA-KT133A-A7V133-C
Note
A7V133-C latest beta bios
Core version
Asus v6.0
BIOS version
Logs
POST string
08/26/2002-VIA-KT133A-A7V133-C
Note
A7V133-C
Core version
Asus v6.0
BIOS version
Logs
POST string
04/23/2002-VIA-KT133A-<A7V133>
Note
A7V133 Add New CPU support
Core version
Asus v6.0
BIOS version
Logs
POST string
04/23/2002-VIA-KT133A-A7V133-C
Note
A7V133-C Support 48-bit HDD
Core version
Asus v6.0
BIOS version
Logs
POST string
03/19/2002-VIA-KT133A-<A7V133>
Note
A7V133 Revise DIM&ESCD address (ATMEL FLASH) Problem.
Core version
Asus v6.0
BIOS version
Logs
POST string
03/19/2002-VIA-KT133A-A7V133-C
Note
A7V133-C ATMEL flash happen S3 return fail
Core version
Asus v6.0
BIOS version
Logs
POST string
02/26/2002-VIA-KT133A-A7V133-C
Note
A7V133-C
Core version
Asus v6.0
BIOS version
Logs
POST string
10/03/2001-VIA-KT133A-A7V133-C
Note
A7V133-C add Morgan/Palomino core support
Core version
Asus v6.0
BIOS version
Logs
POST string
06/06/2001-VIA-KT133A-<A7V133>
Note
A7V133 Add Dimm stability.
Core version
Asus v6.0
BIOS version
Logs
POST string
04/16/2001-VIA-KT133A-<A7V133>
Note
Core version
Asus v6.0
BIOS version
Logs
POST string
03/06/2001-VIA-KT133A-<A7V133>
Note
For A7V133
Core version
Asus v6.0
BIOS version
Logs
drv 6 drivers available
Name
Version
OS support
Size
Filename
Name
Version
4.43V
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP
Size
1.1MB
Filename
Name
Version
Empty
OS support
MS-DOS
Size
227.7KB
Filename
Name
Version
5.70d
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP
Size
3.9MB
Filename
Name
Version
V3.00a
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP
Size
1.9MB
Filename
Name
Version
2.20a
OS support
MS-DOS OS/2 Warp 4.x Windows 9x Windows NT 4.0 Windows XP
Size
4.3MB
Filename
Name
Version
2.10c
OS support
MS-DOS OS/2 Warp 4.x Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP
Size
4.3MB
Filename
doc 3 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2002-10-14
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

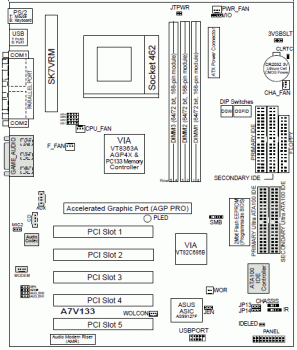

image1 Image 1 of 5 (evasive)
image2 Image 2 of 5 (VooDooMan)
image3 Image 3 of 5 (Fern)
image4 Image 4 of 5 (VooDooMan)
image5 Image 5 of 5 (Fern)
